Onga pressure pump range parts

The range of pressure pumps manufactured by Onga are suited to Australian conditions. There are 3 major types:

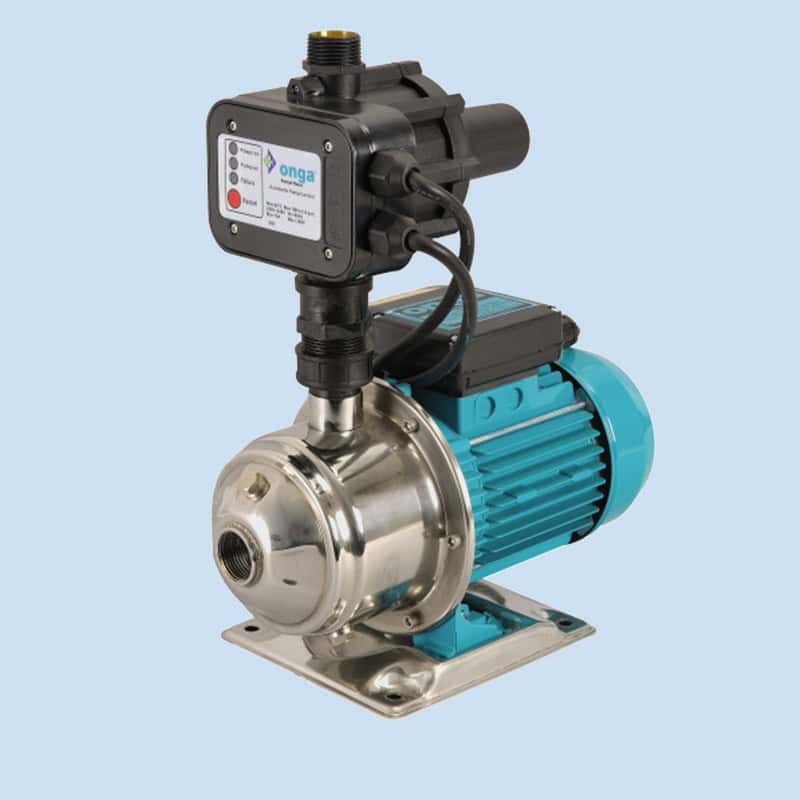

  1. The SMHP range of multistage centrifugal pumps. These pumps provide a flow rate from 20L/min to 80L/min and up to 300-350kpa operating pressure.

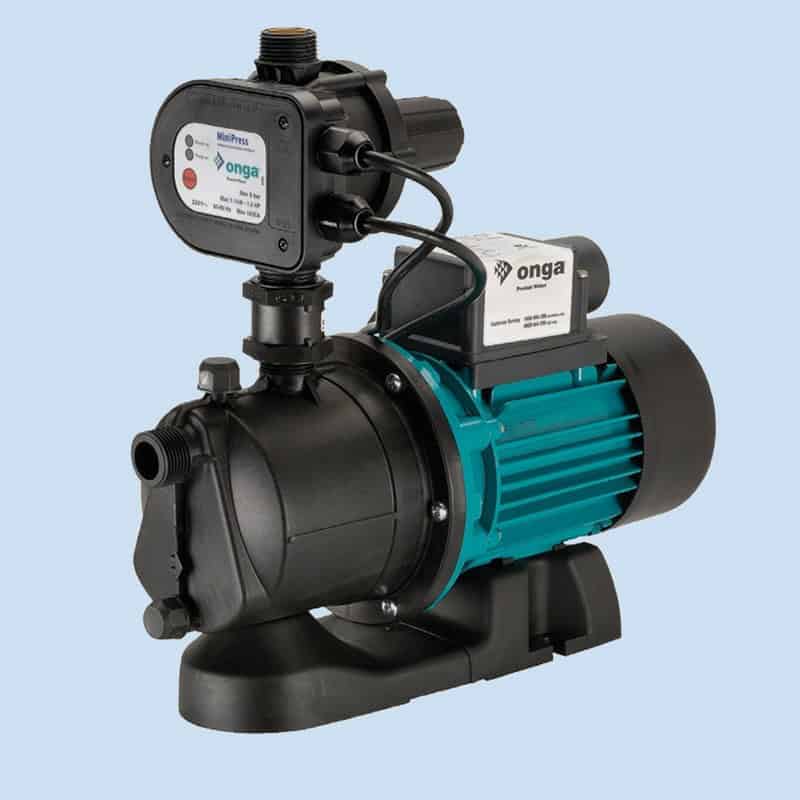

  2. The JM series of jet assisted single impellor pumps. These are a polypropylene housing and composite impellors and provide 15-30L.min for small household applications. These are a great economical pump.

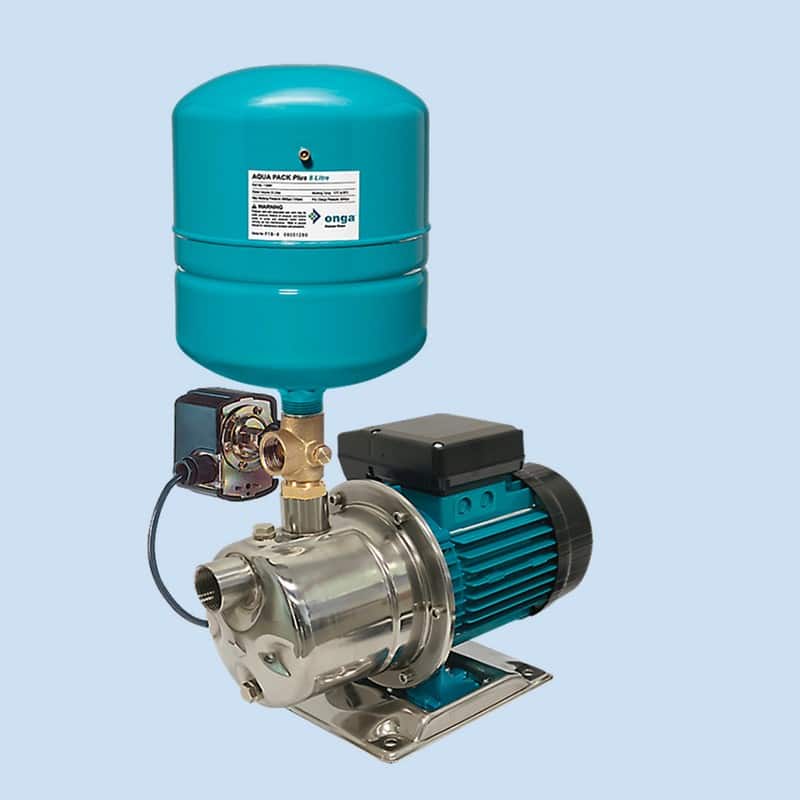

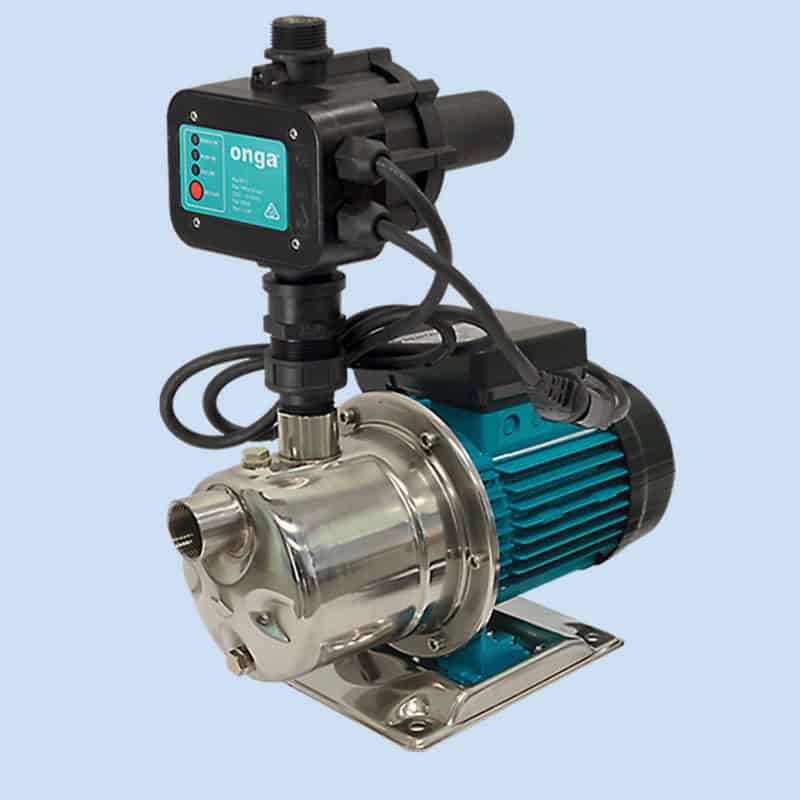

  3. The JS range of jet assisted single impellor pumps. These pumps have a stainless steel housing and composite jet and impellors. an internal jet and venturi setup, to help the impellor with suction lift and also create output pressure. They come in a range of nominal flow rates (15L/minup to 50L/min) and produce approximately 200kpa at their nominal flow rate. The come as a bare pump, with a pressure switch and tank and also with a press control unit.

We stock mechanical seals, bearings, O-rings, capacitors and aftermarket pressure controllers for all the Onga pressure pump models.

Onga pressure pumps – models

Onga pressure pumps – parts reference

ModelMotorPhaseVoltageParts
SMHP4500.45kW1-phase240VFind Parts
SMHP5500.55kW1-phase240VFind Parts
SMHP7500.75kW1-phase240VFind Parts
SMHP9000.90kW1-phase240VFind Parts
JM1000.3kW1-phase240VFind Parts
JSP1100.45kW1-phase240VFind Parts
JSP1200.75kW1-phase240VFind Parts
ModelMechanical seal (Onga part / RP equivalent)O-ring (Onga → RP)BearingsCapacitor
SMHP450800880K
Mechanical Seal Type 55 12mm Nitrile rubber, carbon ceramic		––10 µF 450V
SMHP550800880K
Mechanical Seal Type 55 12mm Nitrile rubber, carbon ceramic		––12 µF 450V
SMHP750800880K
Mechanical Seal Type 55 12mm Nitrile rubber, carbon ceramic		––20 µF 450V
SMHP900800880K
Mechanical Seal Type 55 12mm Nitrile rubber, carbon ceramic		–––
JM100800597
Mechanical Seal Type 55 11mm Nitrile rubber, carbon ceramic		–6204-2RS / 6202-2RS12 µF 450V
JSP110800597
Mechanical Seal Type 55 11mm Nitrile rubber, carbon ceramic		–6204-2RS / 6202-2RS12 µF 450V
JSP120800879K
Mechanical Seal Type 55 12mm JS Nitrile rubber, carbon ceramic		800879K → PDS434036204-2RS / 6202-2RS20 µF 450V

Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
