Davey XF pump range

The Davey range of XF centrifugal pumps, are designed for domestic and commercial applications. These are single and twin impellor centrifugal pumps that can be utilised for a wide range of applications. They come in a range of nominal flow rates from 75L/min up to 150L/min at 100-150kpa pressure. All these pumps are bare manual control pumps as they are suited more for water transfer or circulation rather than pressure applications.

They have with glass reinforced noryl housings (XF171/XF221) and stainless steel housings (XF92/XF192) and glass reinforced noryl internals and polycarbonate impellors and a 1/2″ motor shaft on all models. We stock mechanical seals, bearings, O-rings and capacitors.

XF92
Motor: 240V 50Hz single phase
Motor power: 0.58kw (3.7A current)
Performance: 75L/min at 150kpa, dead head 290kpa, suction down to 7m.
CLICK HERE for the complete range of parts for an XF92.

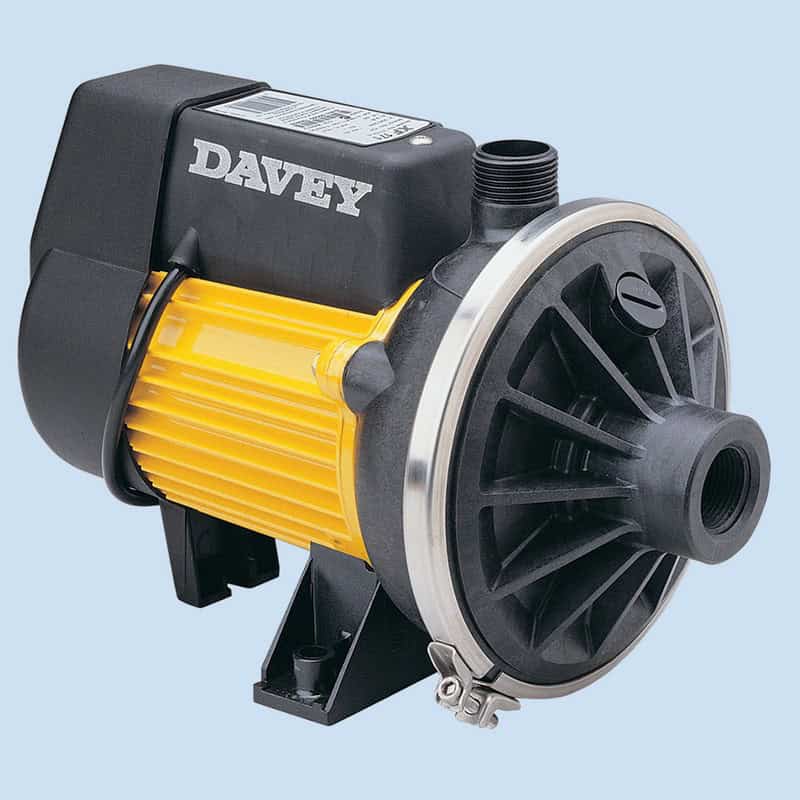

XF171
Motor: 240V 50Hz single phase
Motor power: 0.53kw (2.8A current)
Performance: 110L/min at 100kpa, dead head 170kpa, suction down to 7.5m.
CLICK HERE for the complete range of parts for an XF171.

XF221
Motor: 240V 50Hz single phase
Motor power: 0.7kw (4.5A current)
Performance: 150L/min at 125kpa, dead head 200kpa, suction down to 7.5m.
CLICK HERE for the complete range of parts for an XF221.

XF192
Motor: 240V 50Hz single phase
Motor power: 0.8kw (5.2A current)
Performance: 120L/min at 200kpa, dead head 340kpa, suction down to 7.5m.
CLICK HERE for the complete range of parts for an XF192.

Parts for the XF range Type 6 1/2 inch mechanical seal, 2 x 6203 bearings, 42998 equivalent casing o-ring, 40021 equivalent diffuser O-ring 12 uF capacitor.

Davey Mukmova range parts

The Davey Mukmova range effluent pumps are high flow, open impellor pumps, self priming pumps. These pumps are designed for waste water and similar applications in agriculture, industry and utilities where the water being pumped has large amounts of solids in it. This pump has a semi open vortex style impellor and hard wearing cast iron housing and internals so that it can withstand abbrasive materials and not get blocked and lose flow easily. There is also an easy opening inspection hatch to allow any blockages to be cleaned out in place and it is self priming so it can easily be restarted if it sucks air. They have high flow rates and low output pressures as they are designed to transfer water (350L/min @150kpa). They only have manual control as they are not designed to run as a stored pressure system. We stock mechanical seals, bearings, O-rings, capacitors and aftermarket pressure switches for the entire range of shallow and deep well pumps.

Mukmova
Motor: 240V/480V 50Hz single phase and 415V 50Hz 3 phase
Motor power: 1ph 2.1kw (11A current 240V, 5.5A current 480V) 3ph 2.0kw (4.2A current 415V).
Performance: 350L/min @150kpa, dead head 230kpa, open flow 600L/min.
CLICK HERE for the complete range of parts for an Mukmova.

Parts for the Mukmova Type 6, 1 inch mechanical seal, 6304 bearing, 6205 bearing, 43069 equivalent rear housing o-ring, 43066 equivalent inspection cover/diffuser O-ring and 40uF capacitor.

Davey Dynaflo pump range

The Davey range of Dynaflo centrifugal pumps, are designed mainly for agricultural and commercial applications. These are single impellor centrifugal pumps that can be utilised for a wide range of applications. They come in a range of nominal flow rates from 100L/min up to 400L/min at 150-400kpa pressure. All these pumps are bare manual control pumps as they are suited more for water transfer, irrigation or circulation rather than stored pressure applications. We stock mechanical seals, bearings, O-rings and capacitors.

6200
Motor: 240V 50Hz single phase
Motor power: 1.0kw (6.8A current) Motor shaft 5/8″
Materials: Pump housing glass reinforced Noryl, impellor glass reinforced polycarbonate.
Performance: 150L/min at 200kpa, dead head 255kpa, suction down to 7m.
CLICK HERE for the complete range of parts for an 62001-3 (latest model)

6210/ Boremaster (60061-R WA only)
Motor: 240V 50Hz single phase and 415V 50Hz three phase
Motor power: 1.8kw (6.8A current 1ph, 3.7A current three phase) Motor Shaft 5/8″
Materials: Pump housing glass reinforced Noryl, impellor glass reinforced polycarbonate.
Performance: 175L/min at 250kpa, dead head 316kpa, suction down to 7.0m.
CLICK HERE for the complete range of parts for an 62101-3 (latest model).

6220
Motor: 240V or 480V 50Hz single phase and 415V 50Hz three phase
Motor power: 2.2kw (14A @240V, 7A @480V current 1ph, 4.5A current three phase) Motor shaft 3/4″
Materials: Pump housing cast iron, impellor glass reinforced polycarbonate. Optional cast 316ss housing (-SS model).
Performance: 250L/min at 270kpa, dead head 380kpa, suction down to 7.0m.
CLICK HERE for the complete range of parts for an 62201-2 (latest model).

6230
Motor: 415V 50Hz three phase
Motor power: 3.2kw (6.2A current 3ph) Motor shaft 3/4″
Materials: Pump housing reinforced Noryl, impellor reinforced polycarbonate. Optional cast 316ss housing (-SS model).
Performance: 350L/min at 350kpa, dead head 420kpa, suction down to 7.0m.
CLICK HERE for the complete range of parts for an 62101-3 (latest model).

Parts for the Dynaflo range Type 6A 5/8 inch mechanical seal (6200, 6210 and 60061R early models), Type 6 5/8 inch mechanical seal (62001-3, 62101-3, 62103-1/-2 and 60061R-2), Type 6 3/4 inch mechanical seal (6220 and 6230), 2 x 6304 bearings, 43784 equivalent casing o-ring, 20uF capacitor (6200), 30uF capacitor (6210 and Boremaster), 40 uF capacitor (6220).

Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
