Lowara sHME and eSVE smart pump range
The Lowara smart pump range of variable speed horizontal and vertical multistage pumps are a reliable plug and play constant pressure solution. They are designed for a wide range of applications across agriculture, commerce and industry. We stock mechanical seals, bearings and O-rings for all series of the smart pump range.

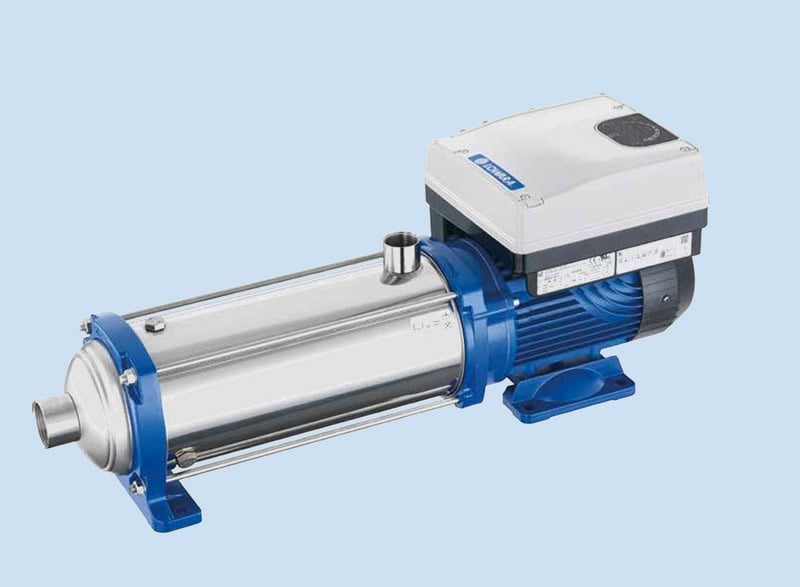

Lowara e-HME Smart Pump Range
The Lowara e-HME Smart Pump range takes the e-HM horizontal multistage pump and pairs it with a variable speed motor for constant-pressure operation straight out of the box – no separate pressure switch or pressure tank system required.
1 x 220-240V Single Phase
| Model | Motor kW | Phase | Voltage | Current (A) | Parts |
|---|---|---|---|---|---|
| SMT/3HME05S | 0.55 | 1 | 240V | 3.07 | View Parts |
| SMT/3HME07S | 0.75 | 1 | 240V | 4.06 | View Parts |
| SMT/3HME09S | 1.10 | 1 | 240V | 5.85 | View Parts |
| SMT/5HME04S | 0.75 | 1 | 240V | 4.05 | View Parts |
| SMT/5HME06S | 1.10 | 1 | 240V | 5.85 | View Parts |
| SMT/5HME08S | 1.50 | 1 | 240V | 7.82 | View Parts |
| SMT/10HME03S | 1.50 | 1 | 240V | 7.81 | View Parts |
3 x 380-415V Three Phase
| Model | Motor kW | Phase | Voltage | Current (A) | Parts |
|---|---|---|---|---|---|
| SMT/5HME10S22T | 2.20 | 3 | 415V | 5.87 | View Parts |
| SMT/10HME04S22T | 2.20 | 3 | 415V | 5.87 | View Parts |
| SMT/15HME03S22T | 2.20 | 3 | 415V | 5.80 | View Parts |
Parts Reference — Lowara e-HME Smart Pump Range (240V Single Phase)
Parts Reference — Lowara e-HME Smart Pump Range (415V Three Phase)
| Model | Mechanical Seal | O-Ring | Bearings |
|---|---|---|---|
| SMT/5HME10S22T | Roten Type 3 14mm mechanical seal (KL01AE9) | Equivalent for KL02ACE housing o-ring | 6204-2RS + 6302-2RS |
| SMT/10HME04S22T | Roten Type 3 17mm mechanical seal (KL01AH2 /KL01AFQ) | Equivalent for KL01AH2 housing o-ring | 6204-2RS + 6302-2RS |
| SMT/15HME03S22T | Roten Type 3 17mm mechanical seal (KL01AH2 /KL01AFQ) | Equivalent for KL01AH2 housing o-ring | 6204-2RS + 6302-2RS |

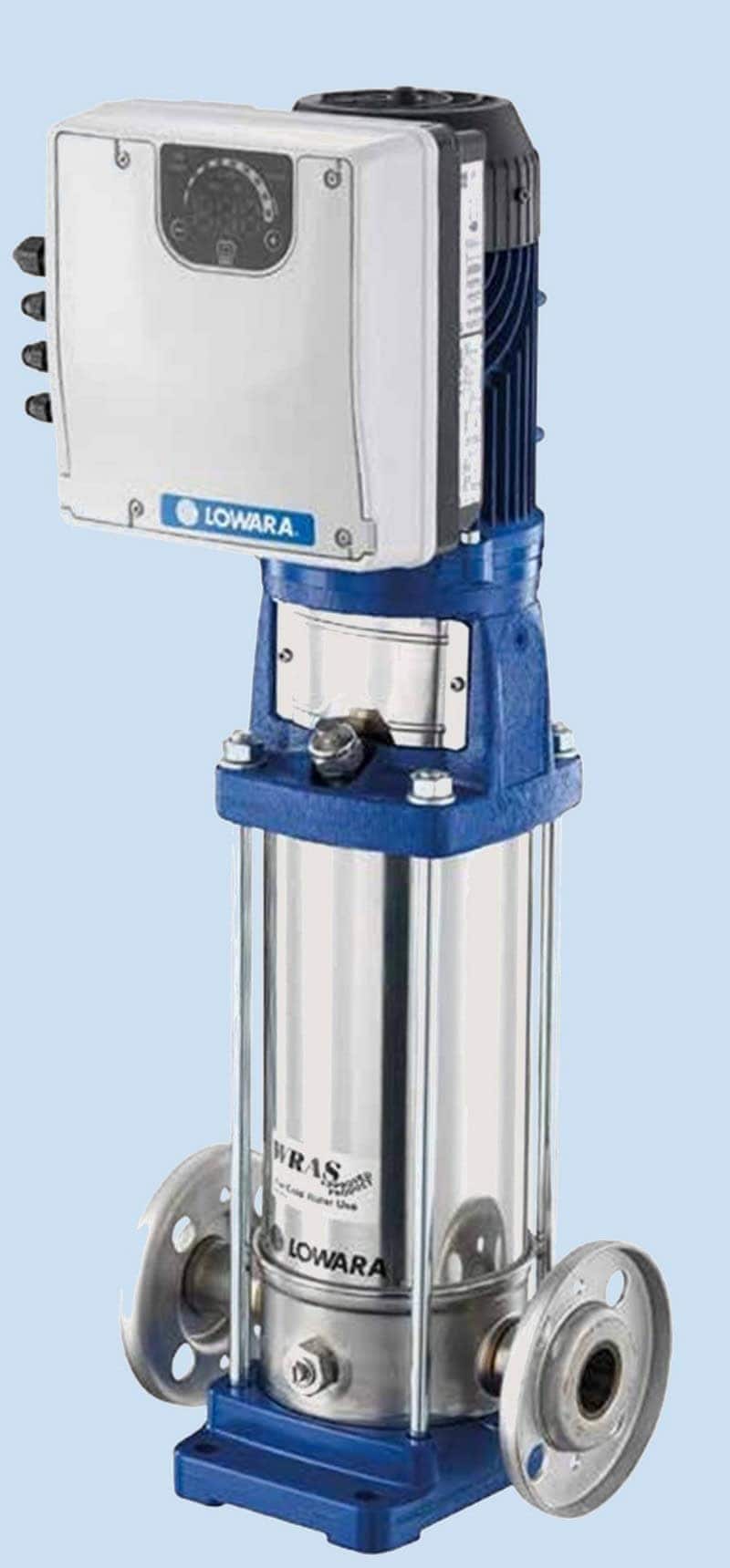

e-SVE 3SV Range — nominal 3m³/hr (50 L/min)
Motor: 240V single phase, e-SM permanent magnet motor with integrated variable frequency drive.
Connections: Round flanges DN25 PN25 or oval flanges Rp 1 PN16.
Options: 304 stainless steel or all 316. Approved for Drinking Water — AS/NZS 4020.
| Model | Motor kW | Single Phase (A) | Three Phase (A) | Parts |
|---|---|---|---|---|
| 3SVE05 | 0.55kW | 3.08A | — | Parts for Lowara 3SVE05 0.55kW 1ph |
| 3SVE07 | 0.75kW | 4.06A | — | Parts for Lowara 3SVE07 0.75kW 1ph |
| 3SVE09 | 1.1kW | 5.85A | — | Parts for Lowara 3SVE09 1.1kW 1ph |
| 3SVE11 | 1.5kW | 7.80A | — | Parts for Lowara 3SVE11 1.5kW 1ph |
e-SVE 5SV Range — nominal 5m³/hr (83 L/min)
Motor: 240V single phase or 415V three phase, e-SM permanent magnet motor with integrated variable frequency drive.
Connections: Round flanges DN32 PN25 or oval flanges Rp 1¼ PN16.
Options: 304 stainless steel or all 316. Approved for Drinking Water — AS/NZS 4020.
| Model | Motor kW | Single Phase (A) | Three Phase (A) | Parts |
|---|---|---|---|---|
| 5SVE06 / 5SVE06T | 1.1kW | 5.86A | 3.46A | Parts for Lowara 5SVE06 1.1kW 1ph Parts for Lowara 5SVE06T 1.1kW 3ph |
| 5SVE08 / 5SVE08T | 1.5kW | 7.81A | 4.43A | Parts for Lowara 5SVE08 1.5kW 1ph Parts for Lowara 5SVE08T 1.5kW 3ph |
| 5SVE12T | 2.2kW | — | 5.88A | Parts for Lowara 5SVE12T 2.2kW 3ph |
e-SVE 10SV Range — nominal 10m³/hr (167 L/min)
Motor: 240V single phase or 415V three phase, e-SM permanent magnet motor with integrated variable frequency drive.
Connections: Round flanges DN40 PN25 or oval flanges Rp 1½ PN16.
Options:304 stainless steel or all 316. Approved for Drinking Water — AS/NZS 4020.
| Model | Motor kW | Single Phase (A) | Three Phase (A) | Parts |
|---|---|---|---|---|
| 10SVE03 / 10SVE03T | 1.5kW | 7.81A | 4.43A | Parts for Lowara 10SVE03 1.5kW 1ph Parts for Lowara 10SVE03T 1.5kW 3ph |
| 10SVE04T | 2.2kW | — | 5.86A | Parts for Lowara 10SVE04T 2.2kW 3ph |
e-SVE 15SV Range — nominal 15m³/hr (250 L/min)
Motor: 415V three phase, e-SM permanent magnet motor with integrated variable frequency drive.
Connections: Round flanges DN50 PN25 or oval flanges Rp 2 PN16.
Options:304 stainless steel or all 316. Approved for Drinking Water — AS/NZS 4020.
| Model | Motor kW | Single Phase (A) | Three Phase (A) | Parts |
|---|---|---|---|---|
| 15SVE02T | 2.2kW | — | 5.87A | Parts for Lowara 15SVE02T 2.2kW 3ph |
Parts Reference — Lowara e-SVE Smart Pumps
| Pump | Mechanical Seal | O-Ring | Bearings |
|---|---|---|---|
| e-SVE 3SV, 5SV (all motor sizes) | Mech Seal Uniten 5K 12mm (Lowara KL01AAD) | 2x PDS43069 housing o-ring (Lowara KL01AAD) | 6302 + 6205 bearings |
| e-SVE 10SV, 15SV (all motor sizes) | Mech Seal Uniten 5K 16mm (Lowara KL01AAE) | 2x PDS43062 housing o-ring (Lowara KL02AA4) | 6302 + 6205 bearings |
Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
