Type MG12 and MG13 mechanical seals

CLICK HERE ← Back to Mechanical Seal Types.

Type MG12 and MG13 mechanical seals

Type MG12 and MG13 mechanical seals are a family of seals that are widely used in commercial centrifugal pumps. They are a design originally developed by Burgmann Industries for use in pumps handling dirty or contaminated water. Where a standard mechanical seal relies on close tolerances at the shaft to exclude debris, the MG12 and MG13 incorporate a rubber bellows against the shaft that acts as a dirt excluder, preventing grit, sand, and particulate from migrating into the seal faces. This makes them well suited to raw water transfer, saline water, waste water and irrigation applications where water quality cannot be guaranteed.

The seal uses a single coil spring to tension the rotary face against the stationary seat, and the rubber bellows functions both as the shaft seal and to provide a barrier to debris entering the back the seal mechanism, simplifying the overall seal function. The rotary face is commonly carbon graphite and the stationary face ceramic, though silicon carbide combinations are available for higher wear applications. On the MG12 the stationary is seated with a standard right angle shaped moulded gasket, whereas the MG13 uses a standard O-ring seated in a groove the back of the section.

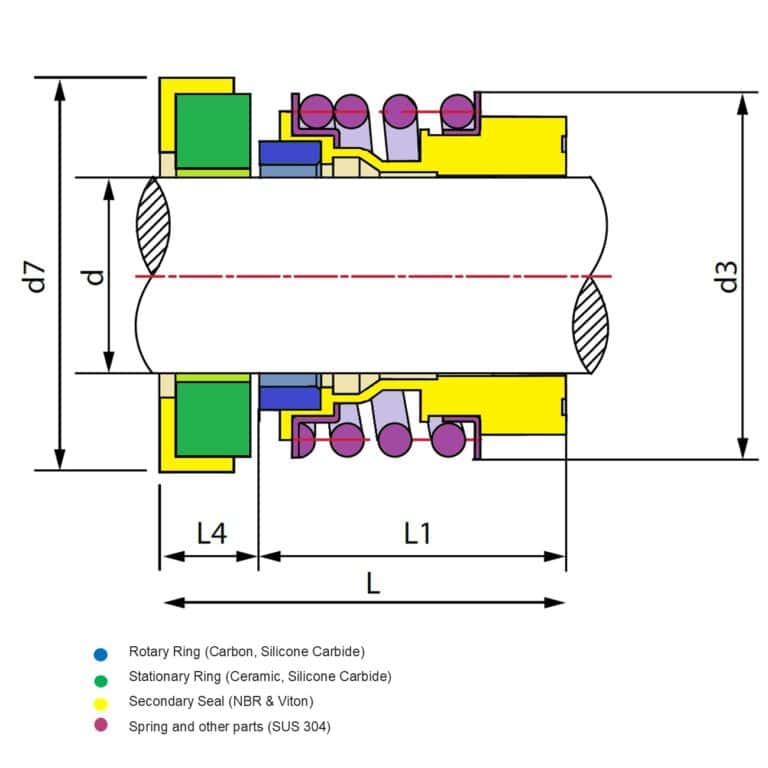

Both the MG12 and MG13 comply with the DIN EN 12756 : 2000 standard (formerly DIN 24960) for centrifugal pump seal dimensions. The MG13 is a variant of the MG12 design with a longer spring section. The MG13 seal has an L1 dimension (see the diagram) that complies with the L1K specification in the DIN EN 12756 : 2000 standard. This longer L1 length means the seal spring has a longer compression length, and so the MG13 can be preferred for higher performance or higher pressure applications compared to the MG12.

MG12 and MG13 seals are widely used by manufacturers like Grundfos, Lowara, Ebara, KSB and others, in both their ISO/DIN spec pumps and other application like waste water.

Rural Pumps stocks compatible MG12 and MG13 seals in a number of common metric sizes. We have Type MG12 seals IN STOCK HERE in our webshop and Type MG13 seals IN STOCK HERE in our webshop.

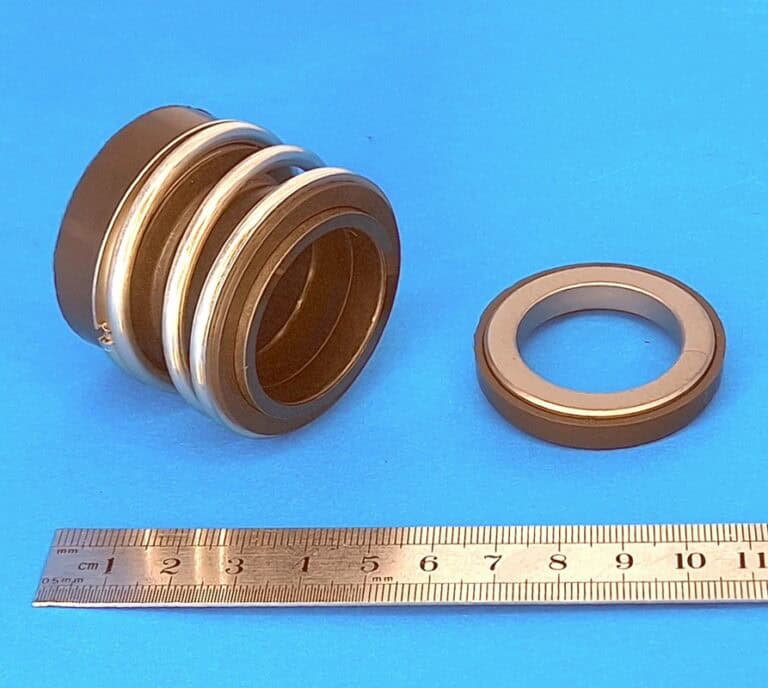

Type MG12 28mm mechanical seal — **MG12 mechanical seal**

MG13 28mm Silicone Carbide mechanical seal — **MG13 mechanical seal**

Type MG12 and MG13
RP Part No	Type	Face and Rubber	Online	Equivalent to	d	d3	d7	L4	L1	L
PSSTMG1212MMxxx	MG12	CSV/SIC	Order in		12	25	23	6.6	25.9	32.5
PSSTMG1312MMxxx	MG13	CSV/SIC	Order in		12	24.5	23	6.6	33.5	40.1
PSSTMG1214MMxxx	MG12	CSV/SIC	Order in		14	28.5	25	6.6	28.4	35
PSSTMG1215MMxxx	MG12	CSV/SIC	Order in		15	28.5	27	6.5	28.5	35
PSSTMG1216MMxxx	MG12	CSV/SIC	Order in		16	28.5	27	6.6	28.4	35
PSSTMG1316MMxxx	MG13	CSV/SIC	Order in		16	28	27	6.6	33.5	40.1
PSSTMG1218MMxxx	MG12	CSV/SIC	Order in		18	32	33	7.5	30	37.5
PSSTMG1220MMxxx	MG12	CSV/SIC	Order in		20	37	35	7.5	30	37.5
PSSTMG1222MMCSV	MG12	CSV/SIC	YES	Lowara KL01AGS	22	37	37	7.5	30	37.5
PSSTMG1322MMxxx	MG13	CSV/SIC	Order in		22	37	37	7.5	37.7	45
PSSTMG1224MMxxx	MG12	CSV/SIC	Order in		24	42.5	39	7.5	32.5	40
PSSTMG1225MMxxx	MG12	CSV/SIC	Order in		25	42.5	40	7.5	32.5	40
PSSTMG1228MMCSV	MG12	CSV/SIC	YES	Lowara KL01AF7	28	49	43	7.5	35	42.5
PSSTMG1328MMSIC	MG13	CSV/SIC	YES	Grundfos 98434904	28	49	43	7.5	42.7	50.2
PSSTMG1230MMxxx	MG12	CSV/SIC	Order in		30	49	45	7.5	35	42.5
PSSTMG1232MMxxx	MG12	CSV/SIC	Order in		32	53.5	48	7.5	35	42.5
PSSTMG1233MMxxx	MG12	CSV/SIC	Order in		33	53.5	48	7.5	35	42.5
PSSTMG1333MMxxx	MG13	CSV/SIC	Order in		33	53	48	7.5	47.7	55.2
PSSTMG1235MMxxx	MG12	CSV/SIC	Order in		35	57	50	7.5	35	42.5
PSSTMG1335MMxxx	MG13	CSV/SIC	Order in		35	57	50	7.5	47.7	55.2
PSSTMG1238MMCSV	MG12	CSV/SIC	YES	Lowara KL01AGD	38	59	56	9	36	45
PSSTMG1338MMSIC	MG13	CSV/SIC	YES	Grundfos 98434906	38	59	56	9	46.2	55.2
PSSTMG1240MMxxx	MG12	CSV/SIC	Order in		40	62	58	9	36	45
PSSTMG1340MMxxx	MG13	CSV/SIC	Order in		40	62	58	9	46.2	55.2
PSSTMG1243MMxxx	MG12	CSV/SIC	Order in		43	65.5	61	9	36	45
PSSTMG1343MMxxx	MG13	CSV/SIC	Order in		43	65.5	61	9	51.2	60.2
PSSTMG1245MMxxx	MG12	CSV/SIC	Order in		45	68	63	9	36	45
PSSTMG1345MMxxx	MG13	CSV/SIC	Order in		45	68	63	9	51.2	60.2
PSSTMG1248MMCSV	MG12	CSV/SIC	YES	Lowara 743742150 / 743742100	48	70.5	66	9	36	45
PSSTMG1348MMSIC	MG13	CSV/SIC	YES	Grundfos 98434909	48	70	66	10	51.2	61.2
PSSTMG1250MMxxx	MG12	CSV/SIC	Order in		50	74	70	9.5	38	47.5
PSSTMG1350MMxxx	MG13	CSV/SIC	Order in		50	73.5	70	9.5	50.7	60.2
PSSTMG1253MMxxx	MG12	CSV/SIC	Order in		53	78.5	73	11	36.5	47.5
PSSTMG1255MMxxx	MG12	CSV/SIC	Order in		55	81	75	11	36.5	47.5
PSSTMG1355MMSIC	MG13	CSV/SIC	Order in	Grundfos 98434943	55	80.5	75	12	59.2	71.2
PSSTMG1258MMxxx	MG12	CSV/SIC	Order in		58	85.5	78	11	41.5	52.5
PSSTMG1260MMxxx	MG12	CSV/SIC	Order in		60	88.5	80	11	41.5	52.5
PSSTMG1265MMxxx	MG12	CSV/SIC	Order in		65	93.5	85	11	41.5	52.5
PSSTMG1268MMxxx	MG12	CSV/SIC	Order in		68	96.5	90	11.3	41.2	52.5
PSSTMG1270MMxxx	MG12	CSV/SIC	Order in	Lowara 743742250 / 743742200	70	99.5	92	11.3	48.7	60
PSSTMG1275MMxxx	MG12	CSV/SIC	Order in		75	107	97	11.3	48.7	60
PSSTMG1280MMxxx	MG12	CSV/SIC	Order in		80	112	105	12	48	60
PSSTMG1285MMxxx	MG12	CSV/SIC	Order in		85	120	110	14	46	60
PSSTMG1290MMxxx	MG12	CSV/SIC	Order in		90	127	115	14	51	65
PSSTMG1295MMxxx	MG12	CSV/SIC	Order in		95	132	120	14	51	65
PSSTMG12100MMxxx	MG12	CSV/SIC	Order in		100	137	125	14	51	65
Legend: CSV = Carbon, Silicon, Viton \| SIC = Silicon Carbide, Silicon Carbide, Viton
Operating Limits: Temperature: -20°C ~ 180°C \| Pressure: ≤ 1.8 MPa \| Speed: ≤ 10m/s

Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
