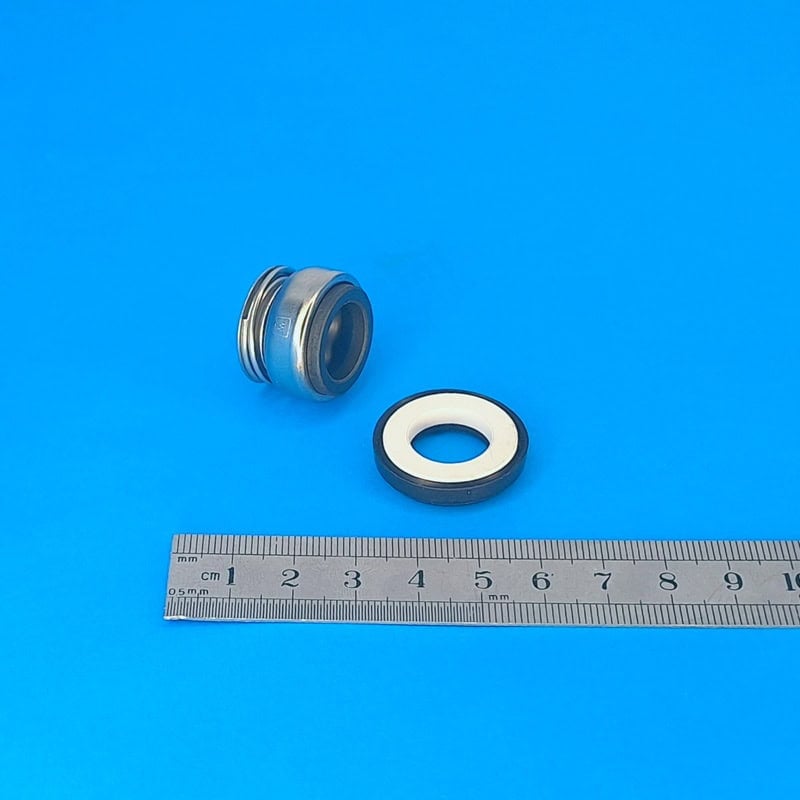

Mechanical Seal Type 55 /BT-AR 12mm shaft Carbon Ceramic Nitrile with thin stationary. Equivalent to Davey 33034 and Onga 700270K
RP Part No: PSST55JS-12CCN
Type: 55
Shaft size: metric 12mm
Seal Faces: carbon rotary, ceramic stationary
Rubber Type: Nitrile
Equivalent to: Davey 33034 and Onga 700270K
Suitable for: Water standard
Temperature range: -30°~200°C
Max pressure: ≤0.6 MPa
Max shaft speed: ≤10m/s
Dimensions (mm):
| d | d3 | d7 | L1 | L4 | L |
|---|---|---|---|---|---|
| 12 | 24 | 26 | 13 | 5.5 | 21 |
If you want to find out more about mechanical seals check out the Type 55 mechanical seal range or my blog Mechanical seals keeping all that pressure inside your pump where it needs to be.
$21.51 inc. GST
In stock (can be backordered)
