Onga centrifugal pump range
Onga has the 400 series, 12 series, 18 series, 14 series and the Blazemaster firefighter range of centrifugal pumps. These are all designed for a wide range of applications across domestic, agriculture and industry. These are 1 and 2 stage centrifugal pumps with both electic and petrol motors designed for water transfer, washdown and irrigation. They come in a range of nominal flow rates from 100L/min up to 800L/min in 125-425 kpa pressure. These pumps aren’t designed to be run with automatic pressure control due to their higher volume and low pressure differential. We stock mechanical seals, bearings, O-rings and capacitors for the entire centrifugal range.
| Component | 400 series (413–417) | 112 | 14 series (142/143/147/148) | 18 series (182/183/184) | Blazemaster (B55H/B65H/BM55H/BM65H) |
|---|---|---|---|---|---|
| Pump casing | 20% GF ABS | 20% GF Noryl | 20% GF Noryl | Cast iron | Powder coated aluminium |
| Impeller | 20% GF polycarbonate | 20% GF polycarbonate | 20% GF polycarbonate | 182/183: 20% GF polycarbonate 184: 20% GF Ultem | 30% GF nylon |
| Diffuser | Noryl | 20% GF Noryl | – | 182/183: 20% GF Noryl 184: 20% GF Ultem | Aluminium |
| Shaft sleeve | Nylon | Nylon | 1-phase: nylon 3-phase: stainless | 182: nylon 183/184: stainless | – |
| Mechanical seal | Carbon / ceramic, nitrile bellows | Carbon / ceramic, nitrile bellows | Carbon / ceramic, nitrile bellows | Carbon / ceramic, nitrile bellows | Carbon / ceramic, nitrile bellows |
| O-rings | Nitrile | – | Nitrile | Nitrile | Nitrile |
| Max. water temp | 70°C | 70°C | 70°C | 70°C | 55°C |
| Max. working pressure | 410 kPa | 385 kPa | 630 kPa | 780 kPa | 1300 kPa (casing) |
GF = glass filled. Minimum water temperature 1°C across the range; maximum ambient 55°C (40°C for Blazemaster). We stock mechanical seals, bearings, O-rings and capacitors for the entire Onga centrifugal range.
Onga centrifugal pumps – models
| Model | Motor | Phase | Voltage | Current | Parts |
|---|---|---|---|---|---|

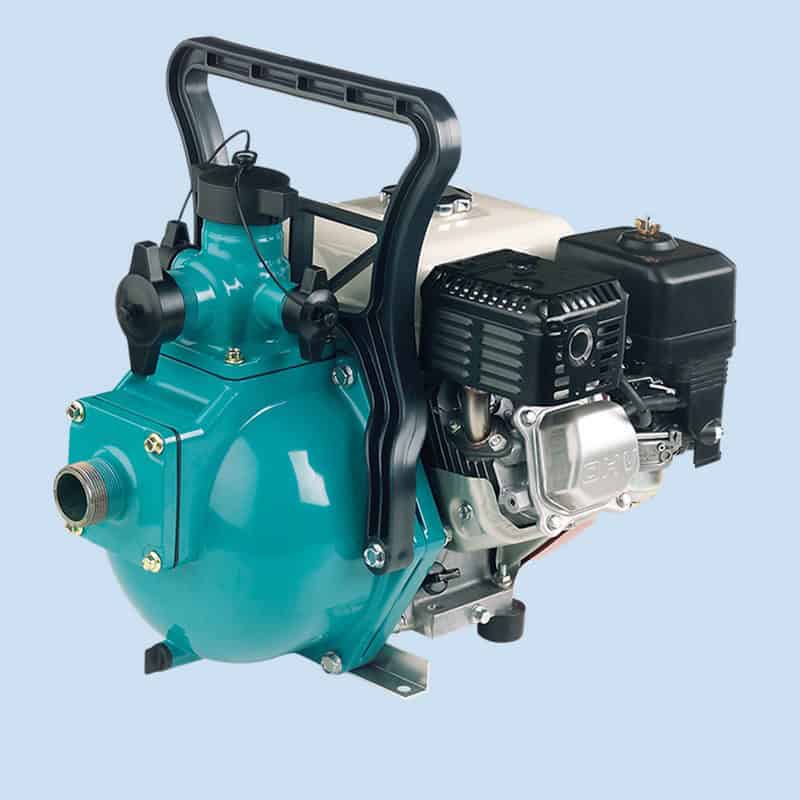

| B55H Blazemaster single Honda GX160 | 5.5hp | Petrol | – | – | Find Parts |
| B65H Blazemaster single Honda GX200 | 6.5hp | Petrol | – | – | Find Parts |
| BM55H Blazemaster twin Honda GX160 | 5.5hp | Petrol | – | – | Find Parts |
| BM65H Blazemaster twin Honda GX200 | 6.5hp | Petrol | – | – | Find Parts |
| 413 0.375kW | 0.375kW | 1-phase | 240V | 2.5A | Find Parts |
| 414 0.375kW | 0.375kW | 1-phase | 240V | 2.6A | Find Parts |
| 415 0.7kW | 0.7kW | 1-phase | 240V | 4.3A | Find Parts |
| 416 0.39kW | 0.39kW | 1-phase | 240V | 2.6A | Find Parts |
| 417 0.67kW | 0.67kW | 1-phase | 240V | 4.2A | Find Parts |
| 142 1.8kW | 1.8kW | 1-phase | 240V | 9.6A | Find Parts |
| 142 1.8kW | 1.8kW | 3-phase | 415V | 3.2A | Find Parts |

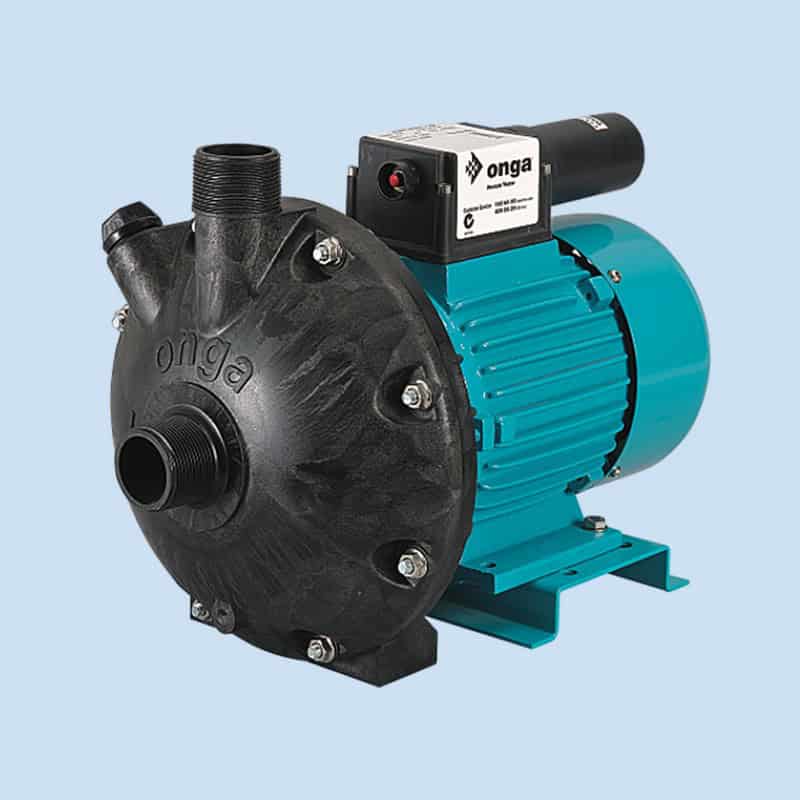

| 143 2.4kW | 2.4kW | 1-phase | 240V | 14A | Find Parts |
| 143 2.4kW | 2.4kW | 3-phase | 415V | 5.2A | Find Parts |
| 147 1.8kW | 1.8kW | 1-phase | 240V | 9.6A | Find Parts |
| 148 1.8kW | 1.8kW | 1-phase | 240V | 9.6A | Find Parts |
| 112 1.1kW | 1.1kW | 1-phase | 240V | 7.2A | Find Parts |
| 112 1.1kW | 1.1kW | 3-phase | 415V | 3.5A | Find Parts |

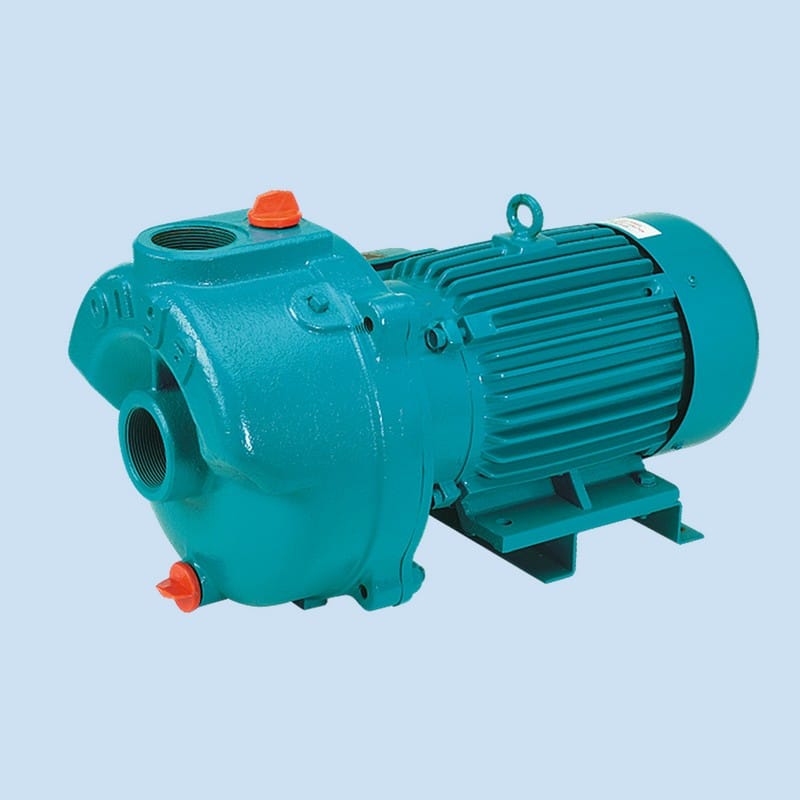

| 182 1.5kW | 1.5kW | 1-phase | 240V | 8.9A | Find Parts |
| 182 1.5kW | 1.5kW | 3-phase | 415V | 3.9A | Find Parts |
| 183 2.4kW | 2.4kW | 1-phase | 240V | 14A | Find Parts |
| 183 2.4kW | 2.4kW | 3-phase | 415V | 5.5A | Find Parts |
| 184 3.8kW | 3.8kW | 1-phase | 240V | 20.6A | Find Parts |
| 184 3.8kW | 3.8kW | 3-phase | 415V | 7.5A | Find Parts |
Onga centrifugal pumps – parts reference
Three-phase motors do not use a capacitor.
Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
