Davey HP range parts
The Davey HP range of pumps are the standard range of twin impellor centrifugal household pressure pumps. They come in a range of nominal flow rates (50L/min, 65L/min and 100L/min) and produce approximately 250kpa at their nominal flow rate. The pumps are mated to a Davey Torrium pressure controller, which gives you reliable pressure without cycling and also has run dry and burst pipe protection built in. They have stainless steel housings, with glass reinforced polycarbonate and noryl internals and a 1/2″ motor shaft. We stock mechanical seals, bearings, O-rings, capacitors and aftermarket pressure controllers for the HP range of pumps.
HP 45-05T
Motor: 240V 50Hz single phase
Motor power: 0.55kw (3.4A current)
Performance: 50L/min at 250kpa, dead head 330kpa.
CLICK HERE for the complete range of parts for a HP 45-05t.
HP 65-06T
Motor: 240V 50Hz single phase
Motor power: 0.6kw (3.8A current)
Performance: 65L/min at 250kpa, dead head 325kpa.
CLICK HERE for the complete range of parts for a HP 65-06t.
HP 85-08T
Motor: 240V 50Hz single phase
Motor power: 0.8kw (5.1A current)
Performance: 100L/min at 250kpa, dead head 320kpa.
CLICK HERE for the complete range of parts for a HP 85-08t.
Also Type 6 1/2 inch mechanical seal, 6203 bearings, 42998 equivalent casing o-ring and 12 uF capacitor.
Davey HS range parts

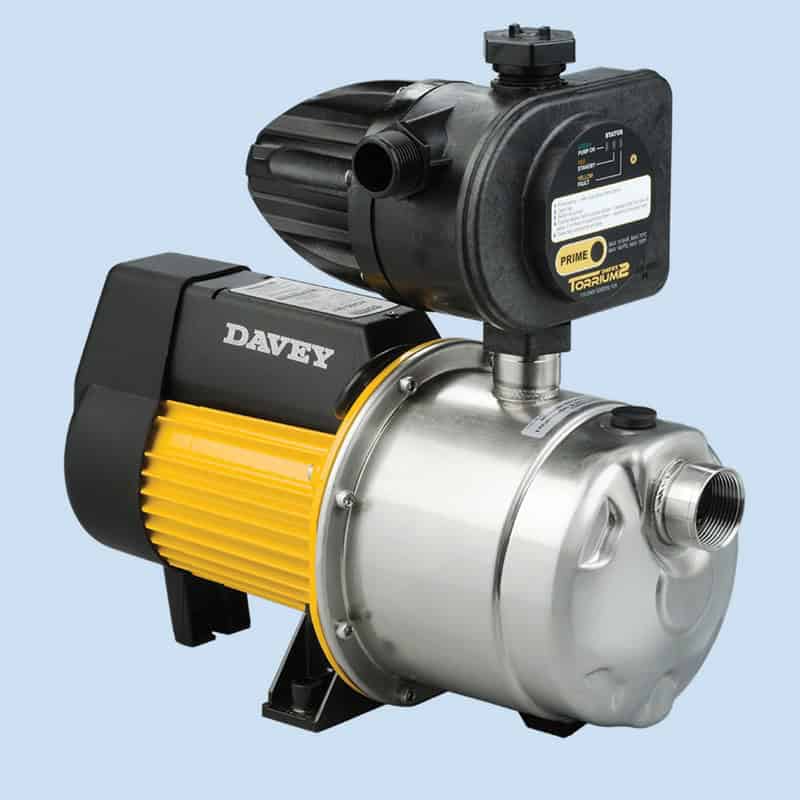

The Davey HS range of pumps are the premium range of 4 impellor centrifugal household pressure pumps. They come in a range of nominal flow rates (45L/min and 70L/min) and produce approximately 300kpa at their nominal flow rate. A very innovative feature of the HS pump is it also has a self priming function so getting it running is much easier. The pumps are mated to a Davey Torrium pressure controller, which gives you reliable pressure without cycling and also has run dry and burst pipe protection built in. They have stainless steel housings, with glass reinforced polycarbonate and noryl internals and a 5/8″ motor shaft. We stock mechanical seals, bearings, O-rings, capacitors and aftermarket pressure controllers for the HS range of pumps.
HS 50-06T
Motor: 240V 50Hz single phase
Motor power: 0.6kw (3.8A current)
Performance: 45L/min at 300kpa, dead head 480kpa.
CLICK HERE for the complete range of parts for
a HS 50-06t.
HS 60-08T
Motor: 240V 50Hz single phase
Motor power: 0.76kw (4.9A current)
Performance: 70L/min at 300kpa, dead head 500kpa.
CLICK HERE for the complete range of parts for
a HS60-08t.
Also Type 6 5/8 inch standard mechanical seal, Type 6 5/8 inch heavy duty mechanical seal, 6203 bearings, 43403 equivalent casing o-ring and 12 uF capacitor.
Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
