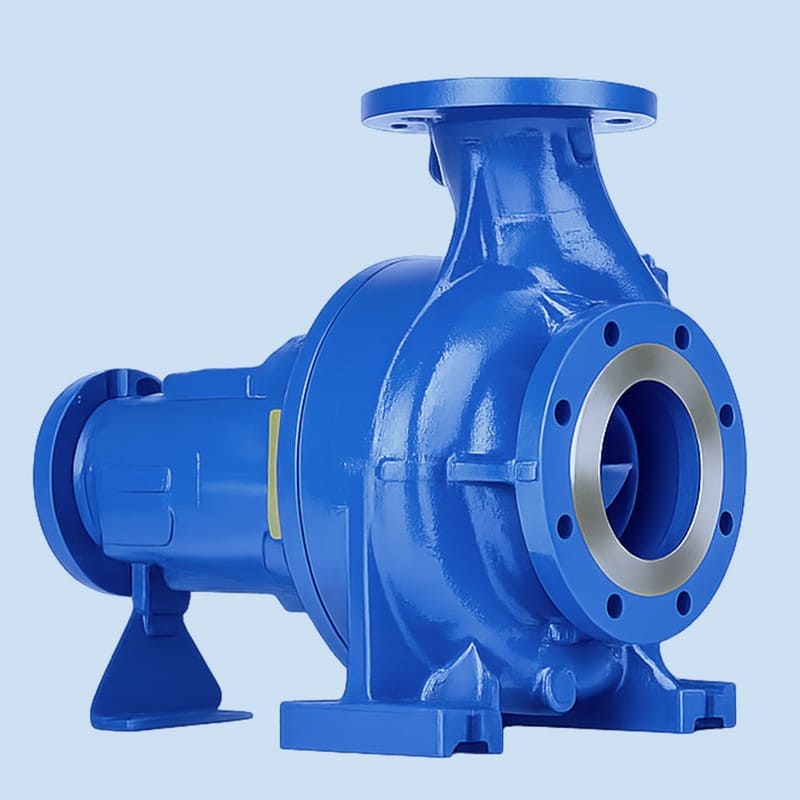

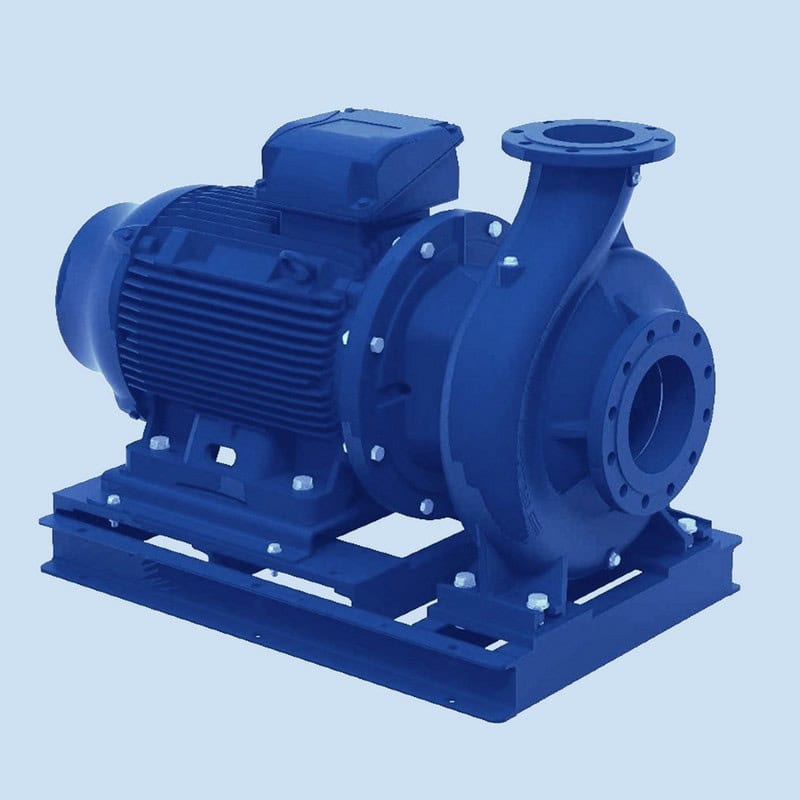

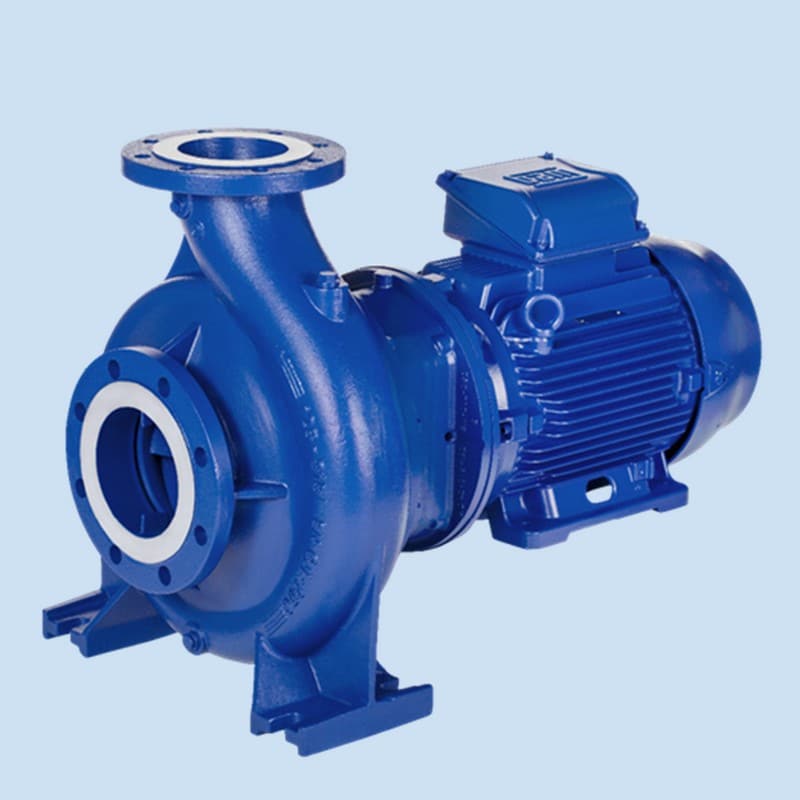

Lowara eNSC pump range

The Lowara eNSC range of ISO single impellor centrifugal pumps are made to match up to ISO 2858 dimension and performance standards. They are designed for a wide range of applications across agriculture, commerce and industry. With cast iron casings rated to 16 bar and a back pull-out design. Select your model below to find compatible mechanical seals, bearings and O-rings for the eNSC range.

Lowara e-NSC End Suction Pump Parts

Spec	Detail
Construction	Close-coupled end suction, back pull-out. e-NSC E: extended shaft (impeller on the motor shaft). e-NSC S: stub shaft with rigid coupling to a standard IEC motor
Maximum flow	640 m³/hr (2-pole); 1,900 m³/hr (4-pole)
Maximum total head	154 m (2-pole); 100 m (4-pole)
Liquid temperature	-25°C to +120°C standard; up to +140°C with special seal
Operating pressure (casing)	16 bar
Material	Cast iron casing with cast iron (C), bronze (B) or stainless steel (N) impeller; stainless steel shaft
Standard mechanical seal	EN 12756 / ISO 3069 single seal, silicon carbide / carbon / EPDM
Connections	EN 733 dimensions, EN 1092 flanges
Motor	IE3 three phase 415V; 2-pole 1.1kW to 200kW, 4-pole 0.25kW to 355kW

e-NSC 2-Pole (2900 rpm) – Model Selector

Model	Inlet DN	Outlet DN	Nominal Impeller Size	Find Parts
22mm Seal
50×32-125	50	32	125	Parts for Lowara e-NSC 50×32-125/11 1.1kW
50×32-160	50	32	160	Parts for Lowara e-NSC 50×32-160/15 1.5kW Parts for Lowara e-NSC 50×32-160/22 2.2kW Parts for Lowara e-NSC 50×32-160/30 3kW Parts for Lowara e-NSC 50×32-160/40 4kW Parts for Lowara e-NSC 50×32-160/55 5.5kW
50×32-200	50	32	200	Parts for Lowara e-NSC 50×32-200/30 3kW Parts for Lowara e-NSC 50×32-200/40 4kW
65×40-125	65	40	125	Parts for Lowara e-NSC 65×40-125/15 1.5kW Parts for Lowara e-NSC 65×40-125/22 2.2kW Parts for Lowara e-NSC 65×40-125/30 3kW Parts for Lowara e-NSC 65×40-125/40 4kW
65×40-160	65	40	160	Parts for Lowara e-NSC 65×40-160/30 3kW Parts for Lowara e-NSC 65×40-160/40 4kW Parts for Lowara e-NSC 65×40-160/55 5.5kW Parts for Lowara e-NSC 65×40-160/75 7.5kW
65×40-200	65	40	200	Parts for Lowara e-NSC 65×40-200/55 5.5kW Parts for Lowara e-NSC 65×40-200/75 7.5kW Parts for Lowara e-NSC 65×40-200/92 9.2kW Parts for Lowara e-NSC 65×40-200/110 11kW Parts for Lowara e-NSC 65×40-200/110A 11kW
65×50-125	65	50	125	Parts for Lowara e-NSC 65×50-125/30 3kW Parts for Lowara e-NSC 65×50-125/40 4kW Parts for Lowara e-NSC 65×50-125/55 5.5kW Parts for Lowara e-NSC 65×50-125/75 7.5kW
65×50-160	65	50	160	Parts for Lowara e-NSC 65×50-160/55 5.5kW Parts for Lowara e-NSC 65×50-160/75 7.5kW Parts for Lowara e-NSC 65×50-160/92 9.2kW Parts for Lowara e-NSC 65×50-160/110 11kW Parts for Lowara e-NSC 65×50-160/110A 11kW
80×65-125	80	65	125	Parts for Lowara e-NSC 80×65-125/40 4kW Parts for Lowara e-NSC 80×65-125/55 5.5kW Parts for Lowara e-NSC 80×65-125/75 7.5kW Parts for Lowara e-NSC 80×65-125/92 9.2kW Parts for Lowara e-NSC 80×65-125/110 11kW Parts for Lowara e-NSC 80×65-125/110A 11kW
28mm Seal
50×32-250	50	32	250	Parts for Lowara e-NSC 50×32-250/55 5.5kW Parts for Lowara e-NSC 50×32-250/75 7.5kW Parts for Lowara e-NSC 50×32-250/92 9.2kW Parts for Lowara e-NSC 50×32-250/110 11kW Parts for Lowara e-NSC 50×32-250/110A 11kW Parts for Lowara e-NSC 50×32-250/150 15kW
65×40-250	65	40	250	Parts for Lowara e-NSC 65×40-250/92 9.2kW Parts for Lowara e-NSC 65×40-250/110 11kW Parts for Lowara e-NSC 65×40-250/110A 11kW Parts for Lowara e-NSC 65×40-250/150 15kW Parts for Lowara e-NSC 65×40-250/185 18.5kW Parts for Lowara e-NSC 65×40-250/220 22kW
65×50-200	65	50	200	Parts for Lowara e-NSC 65×50-200/92 9.2kW Parts for Lowara e-NSC 65×50-200/110 11kW Parts for Lowara e-NSC 65×50-200/110A 11kW Parts for Lowara e-NSC 65×50-200/150 15kW
65×50-250	65	50	250	Parts for Lowara e-NSC 65×50-250/150 15kW Parts for Lowara e-NSC 65×50-250/185 18.5kW Parts for Lowara e-NSC 65×50-250/220 22kW Parts for Lowara e-NSC 65×50-250/300 30kW Parts for Lowara e-NSC 65×50-250/370 37kW Parts for Lowara e-NSC 65×50-250/450 45kW Parts for Lowara e-NSC 65×50-250/550 55kW Parts for Lowara e-NSC 65×50-250/750 75kW
80×65-160	80	65	160	Parts for Lowara e-NSC 80×65-160/92 9.2kW Parts for Lowara e-NSC 80×65-160/110 11kW Parts for Lowara e-NSC 80×65-160/110A 11kW Parts for Lowara e-NSC 80×65-160/150 15kW Parts for Lowara e-NSC 80×65-160/185 18.5kW
80×65-200	80	65	200	Parts for Lowara e-NSC 80×65-200/150 15kW Parts for Lowara e-NSC 80×65-200/185 18.5kW Parts for Lowara e-NSC 80×65-200/220 22kW Parts for Lowara e-NSC 80×65-200/300 30kW
100×80-160	100	80	160	Parts for Lowara e-NSC 100×80-160/110 11kW Parts for Lowara e-NSC 100×80-160/150 15kW Parts for Lowara e-NSC 100×80-160/185 18.5kW Parts for Lowara e-NSC 100×80-160/220 22kW
38mm Seal
80×65-250	80	65	250	Parts for Lowara e-NSC 80×65-250/220 22kW Parts for Lowara e-NSC 80×65-250/300 30kW Parts for Lowara e-NSC 80×65-250/370 37kW Parts for Lowara e-NSC 80×65-250/450 45kW Parts for Lowara e-NSC 80×65-250/550 55kW Parts for Lowara e-NSC 80×65-250/750 75kW Parts for Lowara e-NSC 80×65-250/900 90kW
100×80-200	100	80	200	Parts for Lowara e-NSC 100×80-200/220 22kW Parts for Lowara e-NSC 100×80-200/300 30kW Parts for Lowara e-NSC 100×80-200/370 37kW Parts for Lowara e-NSC 100×80-200/450 45kW
100×80-250	100	80	250	Parts for Lowara e-NSC 100×80-250/150 15kW Parts for Lowara e-NSC 100×80-250/370 37kW Parts for Lowara e-NSC 100×80-250/450 45kW Parts for Lowara e-NSC 100×80-250/550 55kW Parts for Lowara e-NSC 100×80-250/750 75kW Parts for Lowara e-NSC 100×80-250/900 90kW Parts for Lowara e-NSC 100×80-250/1100 110kW Parts for Lowara e-NSC 100×80-250/1320 132kW Parts for Lowara e-NSC 100×80-250/1600 160kW
125×100-160	125	100	160	Parts for Lowara e-NSC 125×100-160/185 18.5kW Parts for Lowara e-NSC 125×100-160/220 22kW Parts for Lowara e-NSC 125×100-160/300 30kW
125×100-200	125	100	200	Parts for Lowara e-NSC 125×100-200/300 30kW Parts for Lowara e-NSC 125×100-200/370 37kW Parts for Lowara e-NSC 125×100-200/450 45kW Parts for Lowara e-NSC 125×100-200/550 55kW
125×100-250	125	100	250	Parts for Lowara e-NSC 125×100-250/450 45kW Parts for Lowara e-NSC 125×100-250/550 55kW Parts for Lowara e-NSC 125×100-250/750 75kW Parts for Lowara e-NSC 125×100-250/900 90kW
150×125-200	150	125	200	Parts for Lowara e-NSC 150×125-200/450 45kW Parts for Lowara e-NSC 150×125-200/550 55kW Parts for Lowara e-NSC 150×125-200/750 75kW Parts for Lowara e-NSC 150×125-200/900 90kW
48mm Seal
125×100-316	125	100	316	Parts for Lowara e-NSC 125×100-316/1100 110kW Parts for Lowara e-NSC 125×100-316/1320 132kW Parts for Lowara e-NSC 125×100-316/1600 160kW
150×125-315	150	125	315	Parts for Lowara e-NSC 150×125-315/1100 110kW Parts for Lowara e-NSC 150×125-315/1320 132kW Parts for Lowara e-NSC 150×125-315/1600 160kW Parts for Lowara e-NSC 150×125-315/2000 200kW

e-NSC 4-Pole (1450 rpm) – Model Selector

Model	Inlet DN	Outlet DN	Nominal Impeller Size	Find Parts
22mm Seal
50×32-125	50	32	125	Parts for Lowara e-NSC 50×32-125/02 0.25kW Parts for Lowara e-NSC 50×32-125/02A 0.25kW Parts for Lowara e-NSC 50×32-125/03 0.37kW
50×32-160	50	32	160	Parts for Lowara e-NSC 50×32-160/02 0.25kW Parts for Lowara e-NSC 50×32-160/03 0.37kW Parts for Lowara e-NSC 50×32-160/05A 0.55kW
50×32-200	50	32	200	Parts for Lowara e-NSC 50×32-200/03 0.37kW Parts for Lowara e-NSC 50×32-200/05 0.55kW Parts for Lowara e-NSC 50×32-200/11 1.1kW
65×40-125	65	40	125	Parts for Lowara e-NSC 65×40-125/02 0.25kW Parts for Lowara e-NSC 65×40-125/02A 0.25kW Parts for Lowara e-NSC 65×40-125/03 0.37kW Parts for Lowara e-NSC 65×40-125/05 0.55kW
65×40-160	65	40	160	Parts for Lowara e-NSC 65×40-160/03 0.37kW Parts for Lowara e-NSC 65×40-160/05 0.5kW Parts for Lowara e-NSC 65×40-160/07 0.75kW Parts for Lowara e-NSC 65×40-160/11 1.1kW
65×40-200	65	40	200	Parts for Lowara e-NSC 65×40-200/07 0.75kW Parts for Lowara e-NSC 65×40-200/11 1.1kW Parts for Lowara e-NSC 65×40-200/15 1.5kW Parts for Lowara e-NSC 65×40-200/15A 1.5kW
65×50-125	65	50	125	Parts for Lowara e-NSC 65×50-125/03 0.37kW Parts for Lowara e-NSC 65×50-125/05 0.5kW Parts for Lowara e-NSC 65×50-125/07 0.75kW Parts for Lowara e-NSC 65×50-125/11 1.1kW
65×50-160	65	50	160	Parts for Lowara e-NSC 65×50-160/07 0.75kW Parts for Lowara e-NSC 65×50-160/11 1.1kW Parts for Lowara e-NSC 65×50-160/11A 1.1kW Parts for Lowara e-NSC 65×50-160/15 1.5kW
80×65-125	80	65	125	Parts for Lowara e-NSC 80×65-125/05 0.5kW Parts for Lowara e-NSC 80×65-125/07 0.75kW Parts for Lowara e-NSC 80×65-125/11 1.1kW Parts for Lowara e-NSC 80×65-125/15 1.5kW
28mm Seal
50×32-250	50	32	250	Parts for Lowara e-NSC 50×32-250/07 0.75kW Parts for Lowara e-NSC 50×32-250/11 1.1kW Parts for Lowara e-NSC 50×32-250/15 1.5kW Parts for Lowara e-NSC 50×32-250/15A 1.5kW Parts for Lowara e-NSC 50×32-250/15B 1.5kW Parts for Lowara e-NSC 50×32-250/22 2.2kW
65×40-250	65	40	250	Parts for Lowara e-NSC 65×40-250/11 1.1kW Parts for Lowara e-NSC 65×40-250/15 1.5kW Parts for Lowara e-NSC 65×40-250/15A 1.5kW Parts for Lowara e-NSC 65×40-250/22 2.2kW Parts for Lowara e-NSC 65×40-250/30 3kW
65×50-200	65	50	200	Parts for Lowara e-NSC 65×50-200/11 1.1kW Parts for Lowara e-NSC 65×50-200/15 1.5kW Parts for Lowara e-NSC 65×50-200/15A 1.5kW Parts for Lowara e-NSC 65×50-200/22 2.2kW Parts for Lowara e-NSC 65×50-200/22A 2.2kW
65×50-250	65	50	250	Parts for Lowara e-NSC 65×50-250/22 2.2kW Parts for Lowara e-NSC 65×50-250/22A 2.2kW Parts for Lowara e-NSC 65×50-250/30 3kW Parts for Lowara e-NSC 65×50-250/40 4kW
80×65-160	80	65	160	Parts for Lowara e-NSC 80×65-160/11 1.1kW Parts for Lowara e-NSC 80×65-160/11A 1.1kW Parts for Lowara e-NSC 80×65-160/15 1.5kW Parts for Lowara e-NSC 80×65-160/15A 1.5kW Parts for Lowara e-NSC 80×65-160/15B 1.5kW Parts for Lowara e-NSC 80×65-160/22 2.2kW
80×65-200	80	65	200	Parts for Lowara e-NSC 80×65-200/15 1.5kW Parts for Lowara e-NSC 80×65-200/22 2.2kW Parts for Lowara e-NSC 80×65-200/22A 2.2kW Parts for Lowara e-NSC 80×65-200/30 3kW Parts for Lowara e-NSC 80×65-200/40 4kW
100×80-160	100	80	160	Parts for Lowara e-NSC 100×80-160/15 1.5kW Parts for Lowara e-NSC 100×80-160/22 2.2kW Parts for Lowara e-NSC 100×80-160/22A 2.2kW Parts for Lowara e-NSC 100×80-160/30 3kW
38mm Seal
65×50-315	65	50	315	Parts for Lowara e-NSC 65×50-315/40 4kW Parts for Lowara e-NSC 65×50-315/55 5.5kW Parts for Lowara e-NSC 65×50-315/75 7.5kW Parts for Lowara e-NSC 65×50-315/110 11kW
80×65-250	80	65	250	Parts for Lowara e-NSC 80×65-250/30 3kW Parts for Lowara e-NSC 80×65-250/40 4kW Parts for Lowara e-NSC 80×65-250/55 5.5kW Parts for Lowara e-NSC 80×65-250/55A 5.5kW Parts for Lowara e-NSC 80×65-250/75 7.5kW
80×65-315	80	65	315	Parts for Lowara e-NSC 80×65-315/55 5.5kW Parts for Lowara e-NSC 80×65-315/75 7.5kW Parts for Lowara e-NSC 80×65-315/110 11kW Parts for Lowara e-NSC 80×65-315/150 15kW
100×80-200	100	80	200	Parts for Lowara e-NSC 100×80-200/30 3kW Parts for Lowara e-NSC 100×80-200/40 4kW Parts for Lowara e-NSC 100×80-200/55 5.5kW Parts for Lowara e-NSC 100×80-200/55A 5.5kW
100×80-250	100	80	250	Parts for Lowara e-NSC 100×80-250/55 5.5kW Parts for Lowara e-NSC 100×80-250/55A 5.5kW Parts for Lowara e-NSC 100×80-250/75 7.5kW Parts for Lowara e-NSC 100×80-250/110 11kW
100×80-315	100	80	315	Parts for Lowara e-NSC 100×80-315/110 11kW Parts for Lowara e-NSC 100×80-315/110A 11kW Parts for Lowara e-NSC 100×80-315/150 15kW Parts for Lowara e-NSC 100×80-315/185 18.5kW Parts for Lowara e-NSC 100×80-315/220 22kW
125×100-160	125	100	160	Parts for Lowara e-NSC 125×100-160/2-2A 2.2kW Parts for Lowara e-NSC 125×100-160/2-3A 2.2kW Parts for Lowara e-NSC 125×100-160/30 3kW Parts for Lowara e-NSC 125×100-160/45 4kW
125×100-200	125	100	200	Parts for Lowara e-NSC 125×100-200/40 4kW Parts for Lowara e-NSC 125×100-200/55 5.5kW Parts for Lowara e-NSC 125×100-200/75 7.5kW
125×100-250	125	100	250	Parts for Lowara e-NSC 125×100-250/55 5.5kW Parts for Lowara e-NSC 125×100-250/75 7.5kW Parts for Lowara e-NSC 125×100-250/110 11kW
125×100-315	125	100	315	Parts for Lowara e-NSC 125×100-315/110 11kW Parts for Lowara e-NSC 125×100-315/150 15kW Parts for Lowara e-NSC 125×100-315/185 18.5kW Parts for Lowara e-NSC 125×100-315/220 22kW Parts for Lowara e-NSC 125×100-315/300 30kW
150×125-200	150	125	200	Parts for Lowara e-NSC 150×125-200/55 5.5kW Parts for Lowara e-NSC 150×125-200/75 7.5kW Parts for Lowara e-NSC 150×125-200/110 11kW
150×125-250	150	125	250	Parts for Lowara e-NSC 150×125-250/75 7.5kW Parts for Lowara e-NSC 150×125-250/110 11kW Parts for Lowara e-NSC 150×125-250/150 15kW
200×150-200	200	150	200	Parts for Lowara e-NSC 200×150-200/110 11kW Parts for Lowara e-NSC 200×150-200/110a 11kW Parts for Lowara e-NSC 200×150-200/150 15kW Parts for Lowara e-NSC 200×150-200/150a 15kW
48mm Seal
100×80-400	100	80	400	Parts for Lowara e-NSC 100×80-400/185 18.5kW Parts for Lowara e-NSC 100×80-400/220 22kW Parts for Lowara e-NSC 100×80-400/300 30kW Parts for Lowara e-NSC 100×80-400/370 37kW
125×100-400	125	100	400	Parts for Lowara e-NSC 125×100-400/300 30kW Parts for Lowara e-NSC 125×100-400/370 37kW Parts for Lowara e-NSC 125×100-400/450 45kW
150×125-315	150	125	315	Parts for Lowara e-NSC 150×125-315/185 18.5kW Parts for Lowara e-NSC 150×125-315/220 22kW Parts for Lowara e-NSC 150×125-315/300 30kW
150×125-400	150	125	400	Parts for Lowara e-NSC 150×125-400/370 37kW Parts for Lowara e-NSC 150×125-400/450 45kW Parts for Lowara e-NSC 150×125-400/550 55kW Parts for Lowara e-NSC 150×125-400/750 75kW
200×150-250	200	150	250	Parts for Lowara e-NSC 200×150-250/150 15kW Parts for Lowara e-NSC 200×150-250/185 18.5kW Parts for Lowara e-NSC 200×150-250/220 22kW Parts for Lowara e-NSC 200×150-250/300 30kW
200×150-315	200	150	315	Parts for Lowara e-NSC 200×150-315/300 30kW Parts for Lowara e-NSC 200×150-315/370 37kW Parts for Lowara e-NSC 200×150-315/450 45kW
200×150-400	200	150	400	Parts for Lowara e-NSC 200×150-400/450 45kW Parts for Lowara e-NSC 200×150-400/550 55kW Parts for Lowara e-NSC 200×150-400/750 75kW Parts for Lowara e-NSC 200×150-400/900 90kW Parts for Lowara e-NSC 200×150-400/1100 110kW
250×200-250	250	200	250	Parts for Lowara e-NSC 250×200-250/1-5 18.5kW Parts for Lowara e-NSC 250×200-250/2-10 22kW Parts for Lowara e-NSC 250×200-250/300 30kW Parts for Lowara e-NSC 250×200-250/300A 30kW
250×200-315	250	200	315	Parts for Lowara e-NSC 250×200-315/300 30kW Parts for Lowara e-NSC 250×200-315/370 37kW Parts for Lowara e-NSC 250×200-315/450 45kW Parts for Lowara e-NSC 250×200-315/550 55kW Parts for Lowara e-NSC 250×200-315/750 75kW
300×250-315	300	250	315	Parts for Lowara e-NSC 300×250-315/370 37kW Parts for Lowara e-NSC 300×250-315/450 45kW Parts for Lowara e-NSC 300×250-315/550 55kW Parts for Lowara e-NSC 300×250-315/750 75kW

Larger 4-pole models (200×150-500, 250×200-400 and -500, 300×250-400 and -500, and the 350×300 range) are not listed — contact us for seals and parts for these pumps.

e-NSC Parts Reference (2-pole and 4-pole)

Model	Mechanical Seal	Casing O-Ring	Bearings
22mm Seal
50×32-125	MG12 22mm seal (Lowara KL01AGS)	PDS42998 (Lowara kit KL02ACY)	2x 6305
50×32-160	MG12 22mm seal (Lowara KL01AGS)	PDS42998 (Lowara kit KL02ACY)	2x 6305
50×32-200	MG12 22mm seal (Lowara KL01AGS)	PDS40009 (Lowara kit KL02ACY)	2x 6305
65×40-125	MG12 22mm seal (Lowara KL01AGS)	PDS42998 (Lowara kit KL02ACY)	2x 6305
65×40-160	MG12 22mm seal (Lowara KL01AGS)	PDS42998 (Lowara kit KL02ACY)	2x 6305
65×40-200	MG12 22mm seal (Lowara KL01AGS)	PDS40009 (Lowara kit KL02ACY)	2x 6305
65×50-125	MG12 22mm seal (Lowara KL01AGS)	PDS42998 (Lowara kit KL02ACY)	2x 6305
65×50-160	MG12 22mm seal (Lowara KL01AGS)	PDS40009 (Lowara kit KL02ACY)	2x 6305
80×65-125	MG12 22mm seal (Lowara KL01AGS)	PDS40009 (Lowara kit KL02ACY)	2x 6305
28mm Seal
50×32-250	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
65×40-250	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
65×50-200	MG12 28mm seal (Lowara KL01AF7)	PDS40009 (Lowara kit KL02ACY)	6306 + 6308
65×50-250	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
80×65-160	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
80×65-200	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
100×80-160	MG12 28mm seal (Lowara KL01AF7)	PLSORHKL02AC1 (Lowara kit KL02ACY)	6306 + 6308
38mm Seal
65×50-315	MG12 38mm seal (Lowara 743742050)	PGS97757675 (Lowara kit 97757675)	2x 6308
80×65-250	MG12 38mm seal (Lowara KL01AGD)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
80×65-315	MG12 38mm seal (Lowara 743742050)	PGS97757675 (Lowara kit 97757675)	2x 6308
100×80-200	MG12 38mm seal (Lowara KL01AGD)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
100×80-250	MG12 38mm seal (Lowara KL01AGD)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
100×80-315	MG12 38mm seal (Lowara 743742050)	PGS97757675 (Lowara kit 97757675)	2x 6308
125×100-160	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
125×100-200	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
125×100-250	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
125×100-315	MG12 38mm seal (Lowara 743742050)	PGS97757675 (Lowara kit 97757675)	2x 6308
150×125-200	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
150×125-250	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
200×150-200	MG12 38mm seal (Lowara 743742000)	PLSORHKL02AC1 (Lowara kit KL02AC1)	2x 6308
48mm Seal
100×80-400	MG12 48mm seal (Lowara 743742150)	PLSORH743780110 (Lowara kit 743780110)	2x 6310
125×100-316	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
125×100-400	MG12 48mm seal (Lowara 743742150)	PLSORH743780110 (Lowara kit 743780110)	2x 6310
150×125-315	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
150×125-400	MG12 48mm seal (Lowara 743742150)	PLSORH743780110 (Lowara kit 743780110)	2x 6310
200×150-250	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
200×150-315	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
200×150-400	MG12 48mm seal (Lowara 743742150)	PLSORH743780110 (Lowara kit 743780110)	2x 6310
250×200-250	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
250×200-315	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310
300×250-315	MG12 48mm seal (Lowara 743742100)	PGS97757675 (Lowara kit 97757675)	2x 6310

NK/NKG Series – Mechanical Seal, Bearing & O-Ring Compatibility

Mechanical seal and bearings are common across all casing sizes within a seal group, with two exceptions noted below. The housing O-ring varies by nominal impeller size — refer to the table on the right.

28mm Seal

38mm Seal

48mm Seal

55mm Seal

Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
