Davey HM pump range

The Davey range of HM pumps are designed for a wide range of applications across domestic, agriculture and industry. These are 4,5 and 6 stage horizontal multistage centrifugal pumps and all components are built from stainless steel. They come in a range of nominal flow rates from 60L/min up to 270L/min at 250-450kpa pressure. There are 3 options for pressure control in the HM range:

  1. Mated to a Davey Torrium pressure controller, which gives you reliable pressure without cycling and also has run dry and burst pipe protection built in (HM60-06T, HM60-08T, HM60-10T, HM90-08T, HM90-11T, HM90-13T, HM160-15T, HM160-19T).
  2. Mated to a Square D pressure switch, with the option to set up a pressure tank to make the system run properly (HM270-19P, HM270-25P).

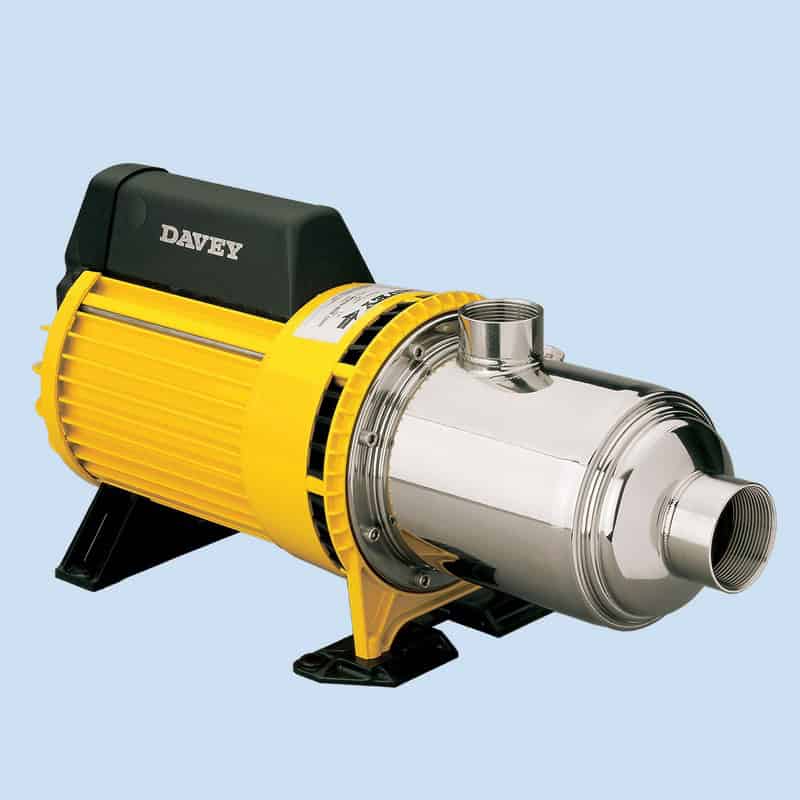

  3. Bare pump with no on pump pressure control (All models available in 3 phase).

They have 304 stainless steel housings, internals and impellor with a 316 stainless steel pump shaft. This makes them reasonably corrosion resistant, able to handle hot water up to 105 deg C and be hard wearing and reliable. We stock mechanical seals, bearings, O-rings and capacitors for the entire HM range.

HM60-06
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 0.58kw (4.0A current single phase, 1.9A current three phase)
Performance: 60L/min at 290kpa, dead head 470kpa.
CLICK HERE for the complete range of parts for an HM60-06.

HM60-08
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 0.72kw (4.5A current single phase, 2.1A current three phase)
Performance: 60L/min at 350kpa, dead head 575kpa.
CLICK HERE for the complete range of parts for an HM60-08.

HM60-10
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 0.94kw (5.9A current single phase, 3.2A current three phase)
Performance: 60L/min at 430kpa, dead head 690kpa.
CLICK HERE for the complete range of parts for an HM60-10.

HM90-08
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 0.78kw (4.9A current single phase, 2.2A current three phase)
Performance: 90L/min at 320kpa, dead head 460kpa.
CLICK HERE for the complete range of parts for an HM90-08.

HM90-11
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 1.05kw (6.5A current single phase, 3.3A current three phase)
Performance: 90L/min at 420kpa, dead head 590kpa.
CLICK HERE for the complete range of parts for an HM90-11.

HM90-13
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 1.4kw (7.2A current single phase, 3.1A current three phase)
Performance: 90L/min at 475kpa, dead head 780kpa.
CLICK HERE for the complete range of parts for an HM90-13.

HM160-15
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 1.5kw (8.0A current single phase, 3.2A current three phase)
Performance: 150L/min at 350kpa, dead head 470kpa.
CLICK HERE for the complete range of parts for an HM160-15.

HM160-19
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 1.8kw (9.7A current single phase, 3.6A current three phase)
Performance: 150L/min at 420kpa, dead head 600kpa.
CLICK HERE for the complete range of parts for an HM160-19.

HM270-19
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 1.9kw (10.0A current single phase, 3.8A current three phase)
Performance: 270L/min at 250kpa, dead head 360kpa.
CLICK HERE for the complete range of parts for an HM270-19.

HM270-25
Motor: 240V 50Hz single phase and 415V 50Hz three phase.
Motor power: 2.5kw (13.8A current single phase, 4.9A current three phase)
Performance: 270L/min at 340kpa, dead head 565kpa.
CLICK HERE for the complete range of parts for an HM270-25.

Parts for the Davey HM range Type MG1 14mm mechanical seal (all models), 6203 bearing and 6302 bearing (HM60-06/-08/-10 HM90-08/-11), 6304 bearing and 6305 bearing (HM90-13 HM160-15/-19 HM270-19/-25), 44853 equivalent casing o-ring (all models), 12uF capacitor (HM60-06/-08), 20uF capacitor (HM60-10 HM90-08/-11), 30uF capacitor (HM90-13 HM160-15/-19 HM270-19), 40 uF capacitor (HM270-25).

Please contact us if you are looking for something unusual or use our pump selector in our webshop to get a replacement seal for your pump.
