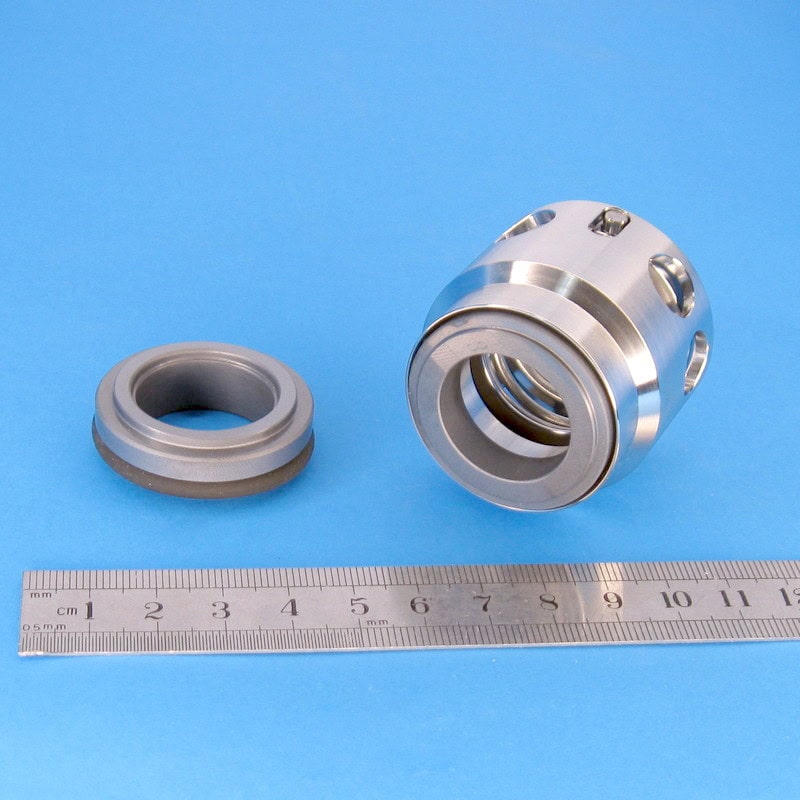

Mechanical seal Type Roten 8E5K Metric 22mm EPDM Silicone Carbide equivalent to Lowara KL01AC0
RP Part No: PSST8E5KUni22SIC
Type: Uniten 8E5K
Shaft size: metric 22mm/26mm step up
Seal Faces: silicone carbide rotary and stationary
Rubber Type: Viton
Equivalent to: Lowara KL01AC0 for the Lowara eSV 33-93 range
Suitable for: Water standard
Temperature range: -30°~180°C
Max pressure: ≤4.0 MPa
Max shaft speed: ≤15m/s
Dimensions (mm):
| d1 | d2 | d3 | d7 | L4 | L | l1K | LE | l2 |
|---|---|---|---|---|---|---|---|---|
| 22 | 26 | 43 | 37 | 10 | 38 | 48 | 25 | 24 |
All dimensions in mm. Dimensions conform to EN 12756 standard.
If you want to find out more about mechanical seals check out my blogs Mechanical seals keeping all that pressure inside your pump where it needs to be and Mechanical Seal Types — Which One Does Your Pump Need?
| Weight | 0.1 kg |
|---|
$441.98 inc. GST
Only 1 left in stock (can be backordered)
