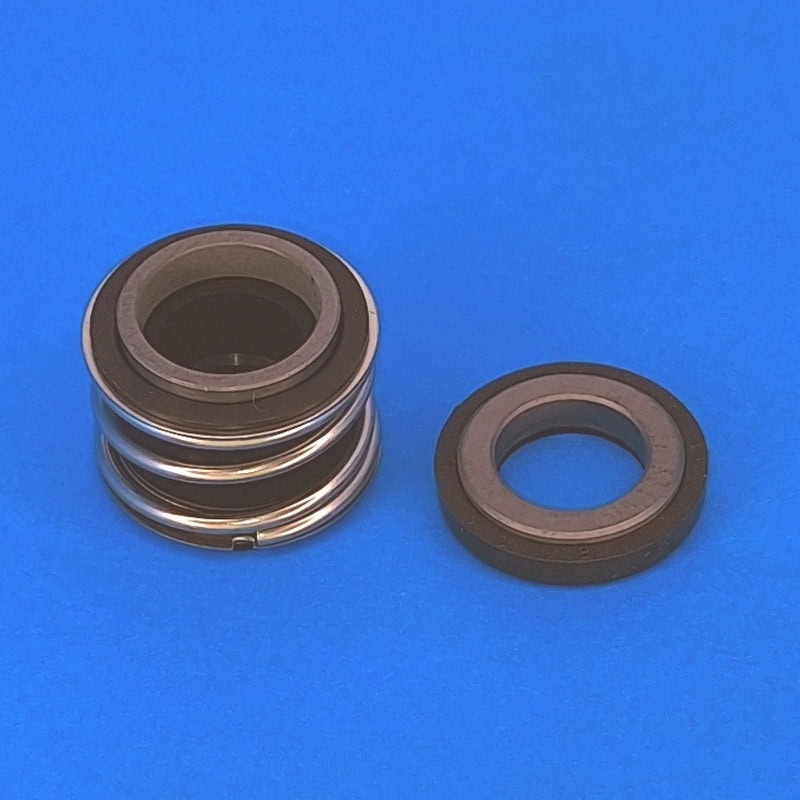

Mechanical Seal Type MG1 14mm shaft Carbon/Silicon Carbide with Viton Rubber. Standard equivalent to a Davey 400558SP.
RP Part No: PSSMG1-14CSV
Type: MG1
Shaft size: metric 14mm
Seal Faces: carbon rotary, silicone carbide stationary
Rubber Type: Viton
Equivalent to: Davey 400558SP
Suitable for: Salt water, abrasive, chemicals
Temperature range: -30°~120°C
Max pressure: ≤1.8 MPa
Max shaft speed: ≤10m/s
Dimensions (mm):
| d | d3 | d7 | L1 | L4 | L |
|---|---|---|---|---|---|
| 14 | 28.5 | 26 | 17 | 5.5 | 22.5 |
If you want to find out more about mechanical seals check out the Type MG1 mechanical seal range or my blog Mechanical seals keeping all that pressure inside your pump where it needs to be.”
