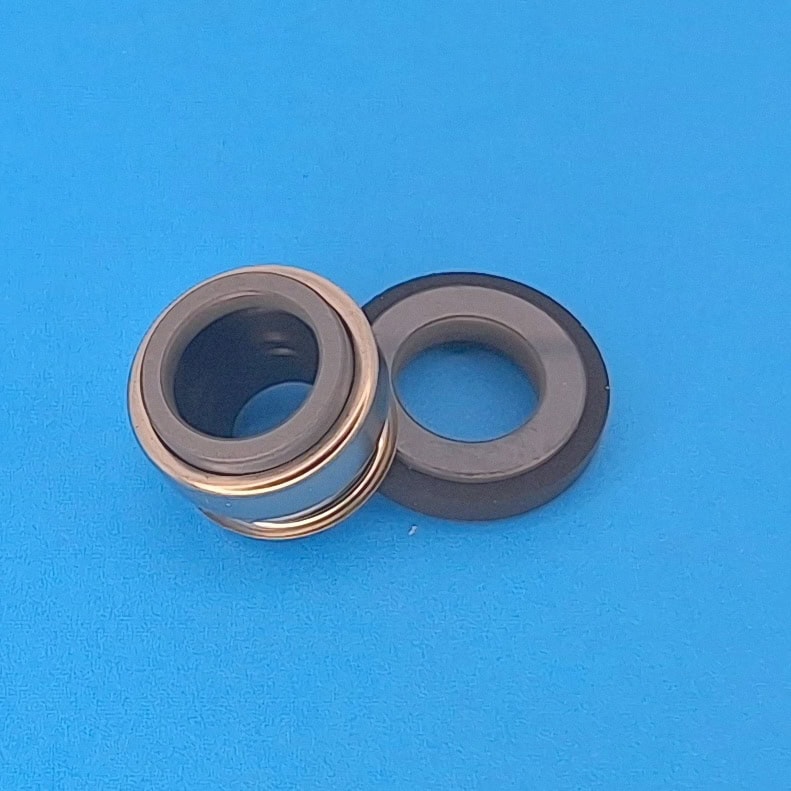

Mechanical Seal Type 55 /BT-AR 12mm shaft with Viton rubber and silicone carbide faces and thin stationary. Equivalent to Davey 33034 and Onga 700270K
RP Part No: PSST55BTAR-12SIC
Type: 55/ BT-AR
Shaft size: metric 12mm
Seal Faces: silicone carbide rotary, silicone carbide stationary (thin profile).
Rubber Type: Viton
Equivalent to: Davey 33034, Onga 700270K.
Suitable for: Salt water, abrasive, chemicals
Temperature range: -30°~200°C
Max pressure: ≤0.6 MPa
Max shaft speed: ≤10m/s

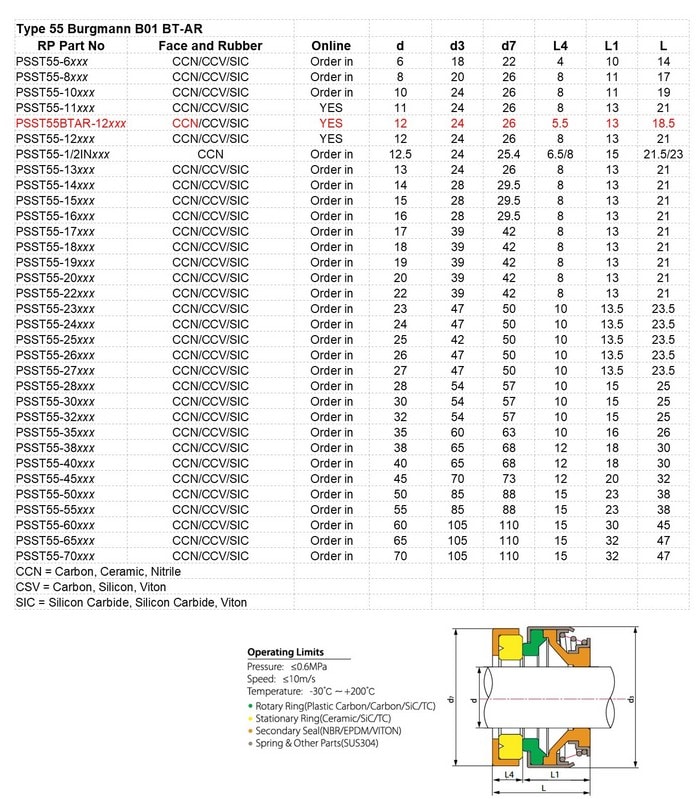

Dimensions (mm):
| d | d3 | d7 | L1 | L4 | L |
|---|---|---|---|---|---|
| 12 | 24 | 26 | 13 | 5.5 | 18.5 |
If you want to find out more about mechanical seals check out the Type 55 mechanical seal range or my blog Mechanical seals keeping all that pressure inside your pump where it needs to be.
| Weight | 0.1 kg |
|---|
$66.90 inc. GST
Only 1 left in stock (can be backordered)
